(8-120) - TRENCHER/PLOW SELECTOR VALVE ASSEMBLY - 104946A1 - USED ON MODELS WITH QUAD OPTION

Запчасти Case 860 (8-120) - TRENCHER/PLOW SELECTOR VALVE ASSEMBLY - 104946A1 - USED ON MODELS WITH QUAD OPTION (08) - HYDRAULICS

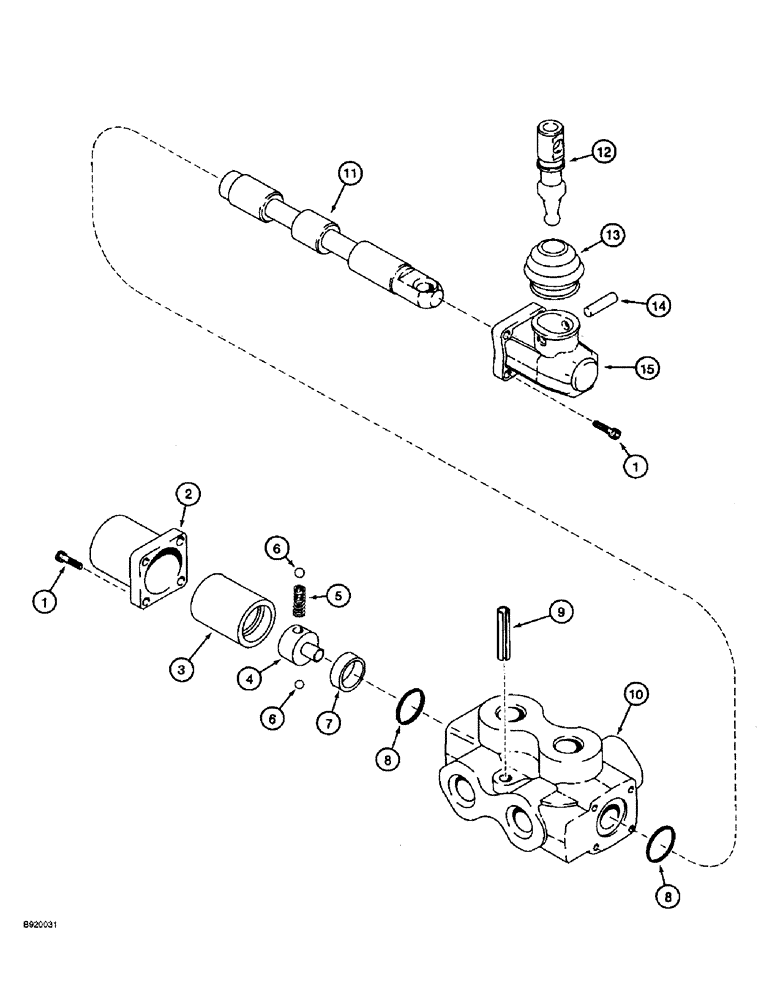

Схема запчастей Case 860 - (8-120) - TRENCHER/PLOW SELECTOR VALVE ASSEMBLY - 104946A1 - USED ON MODELS WITH QUAD OPTION (08) - HYDRAULICS
12
6
15
9
10
14
1
2
13
7
11
4
1
6
5
3
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

104946A1

VALVE

ASSEMBLY - selector, trencher/plow, Includes: Ref. 1 - 15; Also Includes 399434A1 Handle

1шт.

399434A1

HANDLE

1шт.

1

107387A1

SCREW

- hex socket head, special

8шт.

2

107113A1

CAP

- end

1шт.

3

107112A1

BUSHING

SLEEVE - detent

1шт.

4

107117A1

DETENT

- selector valve

1шт.

5

107116A1

SPRING

- detent

1шт.

6

107120A1

BALL

- 7.938 mm, detent

2шт.

7

107111A1

OIL SEAL

HOLDER - detent

1шт.

8

107119A1

O-RING,24.99mm ID x 3.53mm Width

SEAL - valve spool

2шт.

9

107121A1

PIN

- valve body

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

107118A1

LEVER

ASSEMBLY - control, selector valve, Includes: Ref. 12 - 15

1шт.

12

107383A1

LEVER

- control, selector valve

1шт.

13

107384A1

BOOT

- control lever

1шт.

14

107385A1

PIN

- lever retaining

1шт.

15

107386A1

HOUSING

- control lever

1шт.
