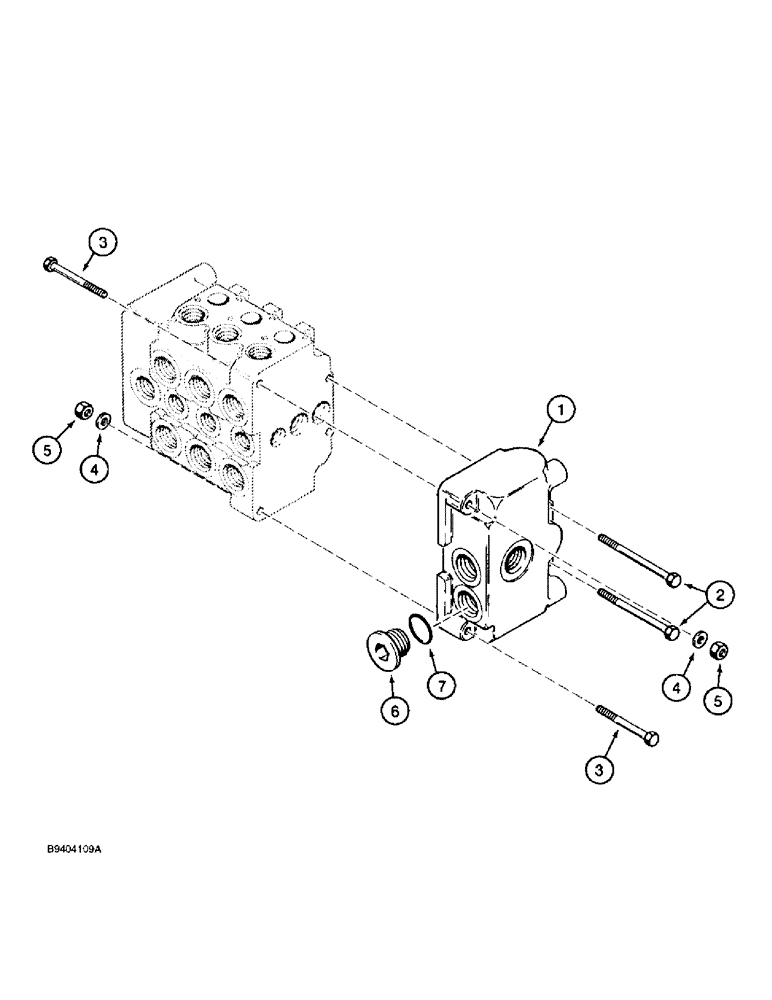

Запчасти Case 860 (8-118) - PLOW CONTROL VALVE ASSEMBLY - H674318 & 130806A1 - END PLATE MOUNTING (08) - HYDRAULICS

H674318

VALVE

ASSEMBLY - control, plow, Includes: Ref. 1 - 11 Figure 8-112, 1 - 48 Figure 8-114, and 1 - 7 this Figure

1шт.

130806A1

VALVE

ASSEMBLY - control, plow, Includes: Ref. 1 - 11 Figure 8-113A, Figure 1 - 48 Figure 117A, and 1 - 7 this Figure

1шт.

1

101488A1

LARGE PLATE

PLATE - end

1шт.

2

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch

2шт.

3

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

5

425-114

NUT,1/4"-28, G5

4шт.

6

86625138

PLUG,7/18" - 14

If used, Includes Ref. 7 Hex Soc, 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
