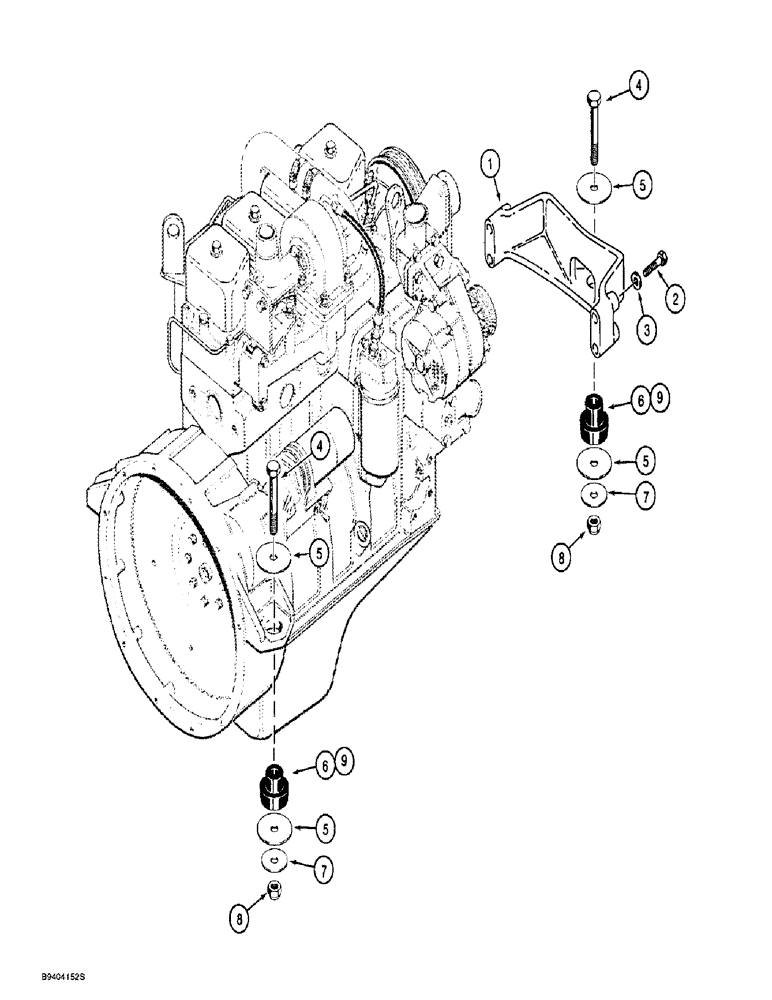

Запчасти Case 860 (2-14) - ENGINE MOUNTING (02) - ENGINE

1

A170985

BRACKET

SUPPORT - engine, front

1шт.

2

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

5

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

6шт.

6

H426916

MOUNTING PARTS

INSULATOR - vibration, rubber, if used

3шт.

7

H426809

SPACER

WASHER - flat, special

3шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.

9

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine mount, rubber, if used

3шт.
