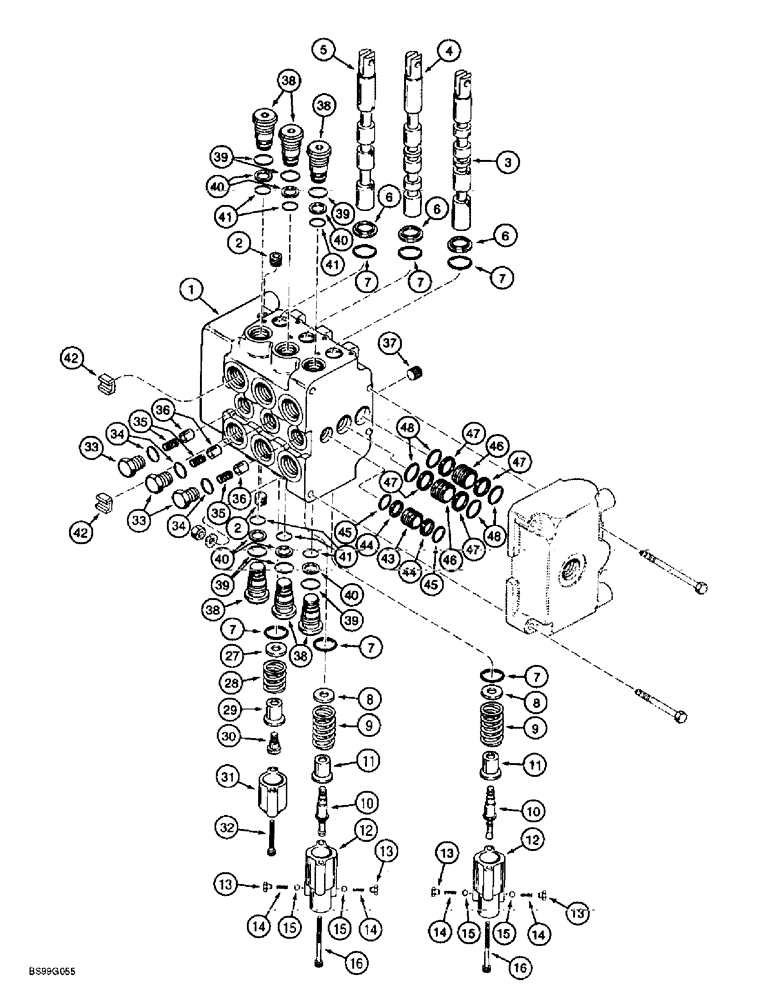

Запчасти Case 860 (8-117A) - PLOW CONTROL VALVE ASSEMBLY - 130806A1 - INLET AND OUTLET SECTION, WITH LEVERS MOUNTED HORIZONTALLY (08) - HYDRAULICS

130806A1

VALVE

ASSEMBLY - control, plow, Includes: Ref. 1 - 11 Figure 8-113A, 1 - 48 this Figure, and 1 - 7 Figure 8-118

1шт.

369952A1

VALVE

SECTION ASSEMBLY - control valve, lift, swing and steering, 3 spool outlet, Includes: Ref. 1 - 37; No Longer Available As An Assembly, Order Components

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - float in

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - float out

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

6

H438926

WIPER SEAL

WIPER - spool

3шт.

7

H438030

O-RING

- spool

6шт.

101491A1

KIT

- float in detent, Includes: Ref. 8 - 16

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - flat, special

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - return, spool

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - detent end

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - detent

2шт.

14

N9506

COIL SPRING

SPRING - detent

2шт.

15

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

16

NSS

NOT SOLD SEPARAT

SCREW - cap

2шт.

H438021

SET

KIT - spring centering, Includes: Ref. 27 - 32

1шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

28

N9539

TENSION SPRING

SPRING - centering, return

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - detent end

1шт.

32

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

H438024

SET

KIT - load check, Includes: Ref. 33 - 36

3шт.

33

H438231

PLUG

- load check

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

37

H438960

PLUG

- seal

1шт.

H438954

PLUG

ASSEMBLY - body, if used, Includes: Ref. 38 - 41

6шт.

38

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

40

H438339

GASKET

RING - backup, O-ring

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

101484A1

LARGE PLATE

PLATE - orifice

2шт.

43

H438029

TUBE

SLEEVE - body, small, Includes: Ref. 44 and 45

1шт.

44

H438044

GASKET

RING - backup

2шт.

45

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

46

H438028

TUBE

SLEEVE - body, large, Includes: Ref. 47 and 48

2шт.

47

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, sleeve O-ring

2шт.

48

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

Sleeve -211, 90 Duro, .796" ID x .139" Thk

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
