(8-112) - PLOW CONTROL VALVE ASSEMBLY - H674318 - CONTROL LEVERS MOUNTED VERTICALLY

Запчасти Case 860 (8-112) - PLOW CONTROL VALVE ASSEMBLY - H674318 - CONTROL LEVERS MOUNTED VERTICALLY (08) - HYDRAULICS

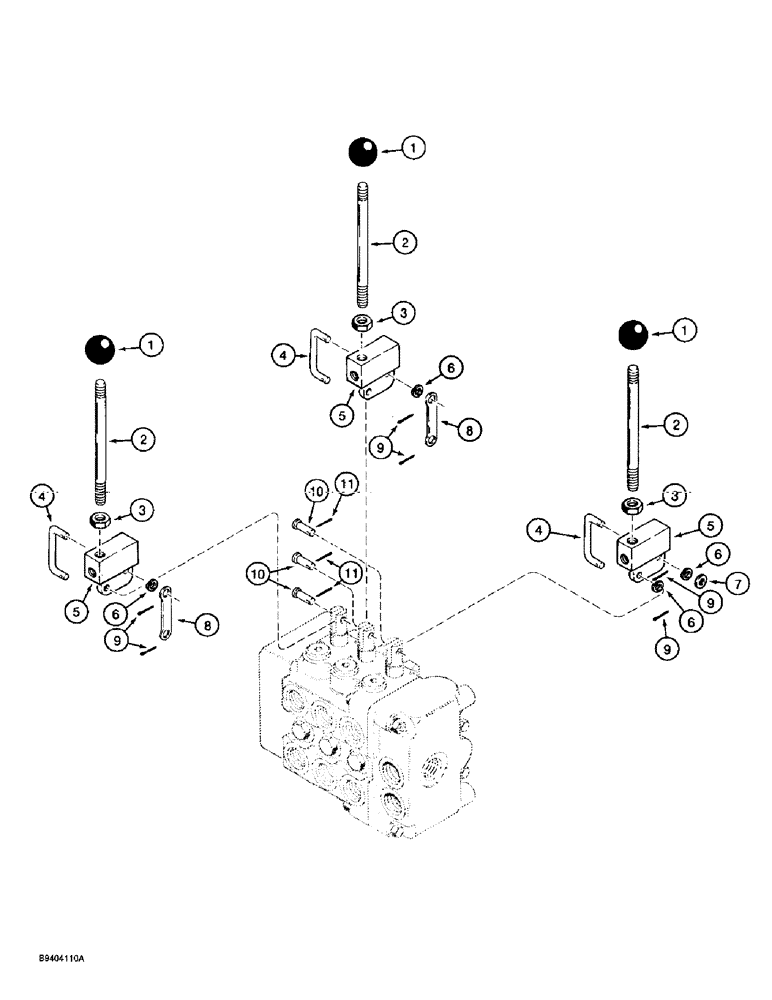

Схема запчастей Case 860 - (8-112) - PLOW CONTROL VALVE ASSEMBLY - H674318 - CONTROL LEVERS MOUNTED VERTICALLY (08) - HYDRAULICS
9
3
1
11
6
4
3
1
2
1
4
4
6
7
6
9
5
8
10
5
2
9
10
5
6
2
8
11
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674318

VALVE

ASSEMBLY - control, plow, Includes: Ref. 1 - 11 this Figure, 1 - 48 Figure 8-114, and 1 - 7 Figure 8-118

1шт.

1

H152207

BALL KNOB

KNOB - lever, plow control

3шт.

2

101487A1

ROD

LEVER - plow control

3шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

3шт.

4

H438042

ARM

LINK - C-type

3шт.

5

H438043

BLOCK ASSY.

BLOCK - pivot

3шт.

6

101485A1

SPRING WASHER

- spring, if used

4шт.

7

101486A1

WASHER

- flat, special

1шт.

8

101483A1

LINK

- connecting

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

6шт.

10

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

3шт.

11

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.
