Запчасти Case 860 (8-111A) - PLOW BLADE STEERING CYLINDER ASSEMBLY - 111620A2 (08) - HYDRAULICS

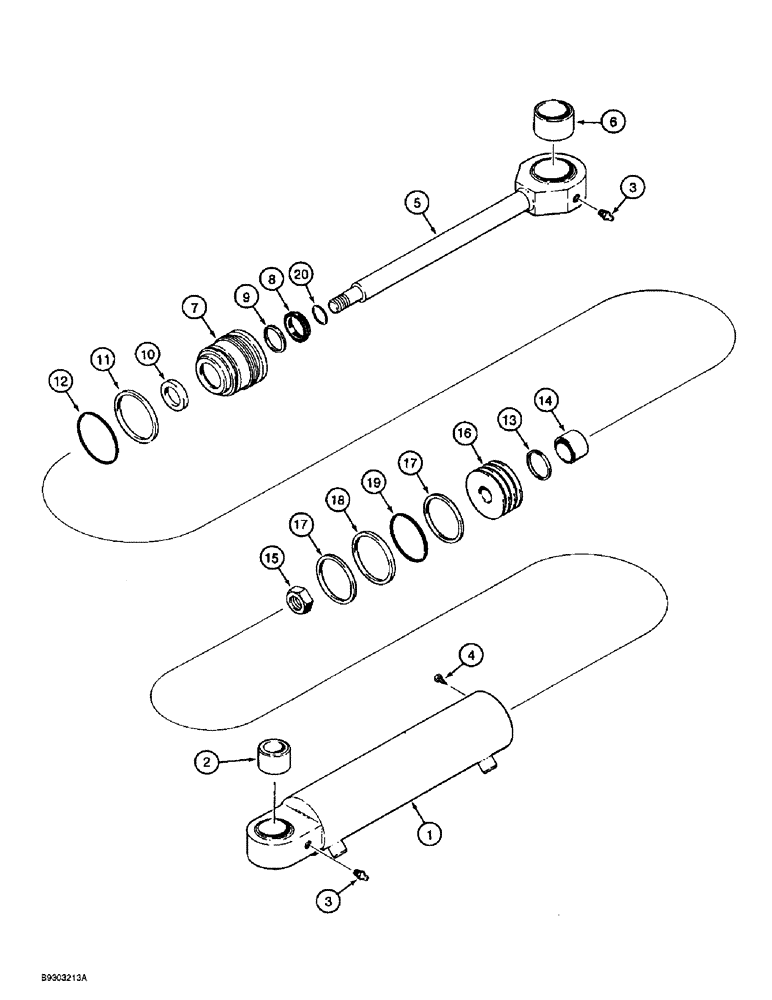

Схема запчастей Case 860 - (8-111A) - PLOW BLADE STEERING CYLINDER ASSEMBLY - 111620A2 (08) - HYDRAULICS
16
8
17
9
19
13
3
12
1
7
4
15
3
5
2
20
11
6
14
10
18
17

Артикул

Название

Примечание

Количество

111620A2

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, plow blade steering, see FIgure 9-107A for mounting, Includes: Ref. 1 - 20

1шт.

1

119353A2

TUBE

- cylinder

1шт.

2

119364A1

BUSHING

- cylinder tube

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW, SELF TAPPING, Hex Hd, #8 x 3/8"

1шт.

Part of Seal Kit P/N 119375A1

1шт.

5

119357A2

ROD

- piston

1шт.

6

119366A1

BUSHING

- piston rod

1шт.

7

119360A1

HEAD

GLAND - cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 119375A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 119375A1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - buffer

1шт.

Part of Seal Kit P/N 119375A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 119375A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 119375A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - gland locking

1шт.

Part of Seal Kit P/N 119375A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

Part of Seal Kit P/N 119375A1

1шт.

15

231-41310

LOCK NUT,5/8"-11, GB

NUT - hex, self locking, 5/8 inch NC

1шт.

16

119367A1

PISTON

- cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 119375A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 119375A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit P/N 119375A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 119375A1

1шт.

119375A1

SEAL KIT

KIT - seal, includes 4, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20

1шт.

Выбрано товаров: 34
