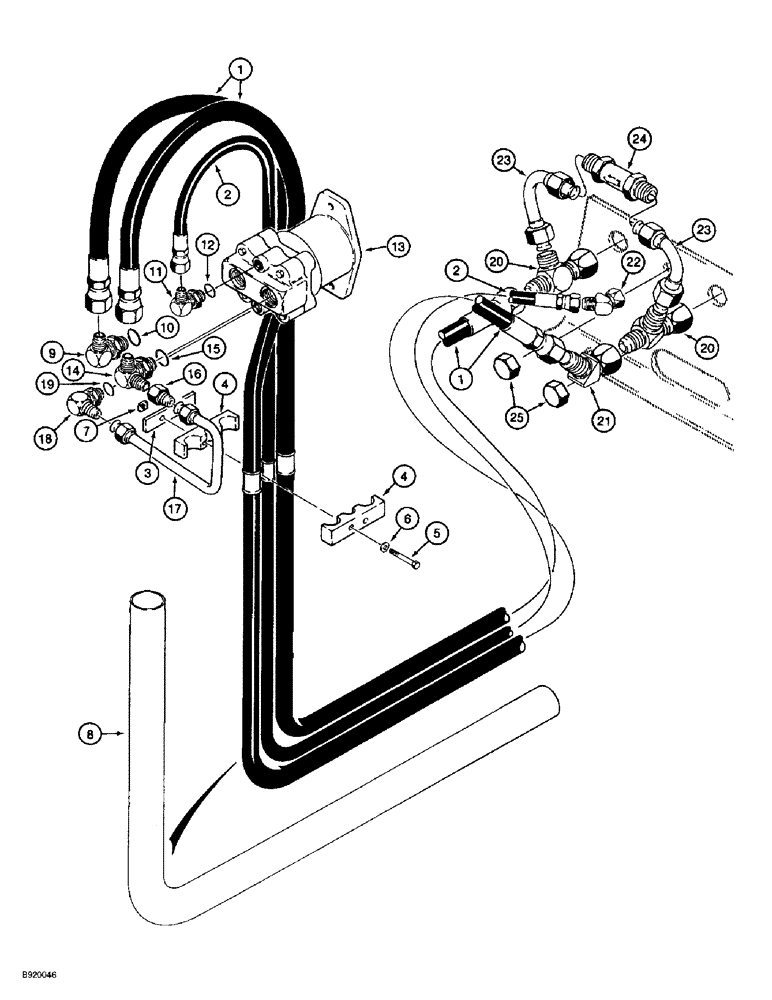

Запчасти Case 860 (8-104) - PLOW HYDRAULIC CIRCUIT - PLOW MOTOR SUPPLY AND RETURN LINES FROM REAR BULKHEAD PLATE (08) - HYDRAULICS

1

H438196

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, rear bulkhead plate to plow motor, "A" and "B" ports

2шт.

2

H438084

HOSE ASSY.

HOSE - 2921 mm (115 inch) long, plow motor to rear bulkhead plate, case drain

1шт.

3

H438204

BAR

- clamp

1шт.

4

H439256

BLOCK

- clamp

2шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

7

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

8

H438197

SLEEVE

- nylon, plow motor hoses

2шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

H673911

HYDRAULIC MOTOR

MOTOR ASSEMBLY - plow, parts list Figure 8-122, see Figure 9-106 for mounting

1шт.

14

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

- 90 degree, special, Includes: Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

H439323

FITTING

RESTRICTOR - straight, 0.0595 inch orifice

1шт.

17

102567A1

TUBE,12.7 mm OD, 167.8, 81.8 mm Length

- plow motor flush

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-5412

TEE,37 Degree, 7/8"-14x1 1/16"-12, Fem Sw Runx1 1/16"-12 Br

- 1-1/16-12 flare branch x flare x 1-5/16-12 swivel

2шт.

21

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.

22

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

23

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

- tee to check valve

2шт.

24

L126503

VALVE, CHECK

VALVE - check, at rear bulkhead plate

1шт.

25

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

2шт.
