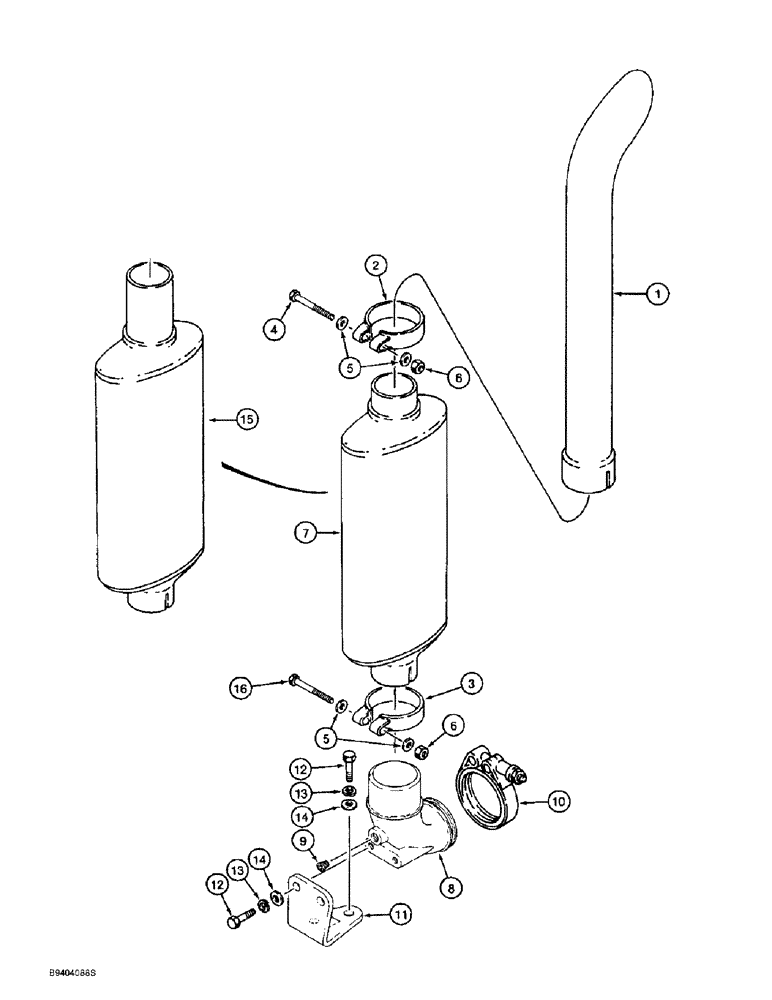

Запчасти Case 860 (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A172158

PIPE, EXHAUST SYSTEM

PIPE - exhaust, muffler

1шт.

2

R48710

CLAMP,85.7mm

-, Serial Range: muffler-pipe

1шт.

3

R27691

CLAMP

-, Serial Range: muffler-elbow

1шт.

4

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2-4шт.

6

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

7

A170065

MUFFLER

- exhaust, turbocharged engine, no longer used, order item 15, 129272A1 muffler

1шт.

8

A173623

ELBOW

-

1шт.

9

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT

1шт.

10

A170467

CLAMP,72mm ID

- includes hardware, Serial Range: elbow-turbocharger

1шт.

11

J903760

BRACKET

- mounting, exhaust elbow, used with 4T-390 engine

1шт.

11

281897A1

BRACE

BRACKET - mounting, exhaust elbow, used with 4T-390 Emissions Certified engine

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

15

129272A1

MUFFLER

- exhaust, turbocharged engine

1шт.

16

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.
