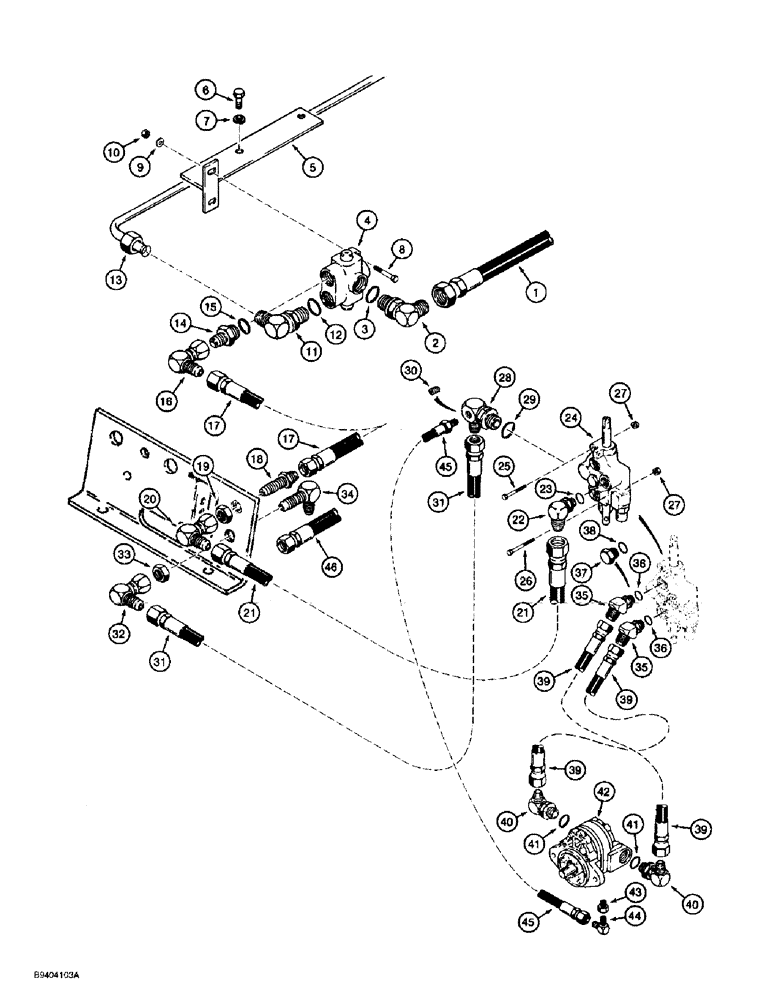

Запчасти Case 860 (8-088) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Long, Supply, from Priority Valve to Selector Valve, see Figure 8-006 for Continuation of Circuit 0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

L55038

VALVE

ASSEMBLY - selector, Hydra-Borer and backhoe, parts list Figure 8-098

1шт.

5

H672506

BRACKET

- selector valve mounting, mounts on left-hand side of unit using existing transmission mounting hardware (items 6 and 7 below)

1шт.

6

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.

8

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

- backhoe supply line, from selector valve

1шт.

14

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

17

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

. Selector Valve to Control Valve 0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

18

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

21

D55773

HOSE

- 521 mm (20-1/2 inch) long, bulkhead elbow to control valve

1шт.

22

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, remote hydraulic, Hydra-Borer or hydraulic tool, see Figures 8-094 and 8-096 for correct assembly and components

1шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, self-locking

2шт.

28

H438268

ADAPTER

ELBOW - special, outlet of control valve, Includes: Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

221-841

PLUG

- hex socket, 1/4 inch PT, installed in item 28 elbow when Hydra-Borer is not used, if used

1шт.

31

H282863

HYDRAULIC HOSE,19.05 mm ID x 762.00 mm, SAE 100R1

- Return, Control valve to bulkhead elbow 19.05 mm ID x 762.00 mm, SAE 100R1

1шт.

32

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

34

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

Includes: Ref. 36 90º Blkhd, 1 1/16"-12, 37º x 1 1/16"-12, 37º

1шт.

35

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 36

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Installed in control valve when Hydra-Borer is not used, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

D20358

HOSE

- 1168 mm (46 inch) long, control valve to Hydra-Borer drive motor

2шт.

40

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

H654814

MOTOR

ASSEMBLY - hydraulic, Hydra-Borer, parts list Figure 8-092, mounting hardware on Figure 9-086

1шт.

43

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

44

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

45

H209023

HOSE ASSY.

HOSE - 1499 mm (59 inch) long, motor drain to special elbow

1шт.

46

130946A1

HOSE

- 788 mm (31 inch) long, auxiliary hydraulic return, see Figure 8-010 for return line from rear bulkhead plate to return tee at attachment control valve

1шт.
