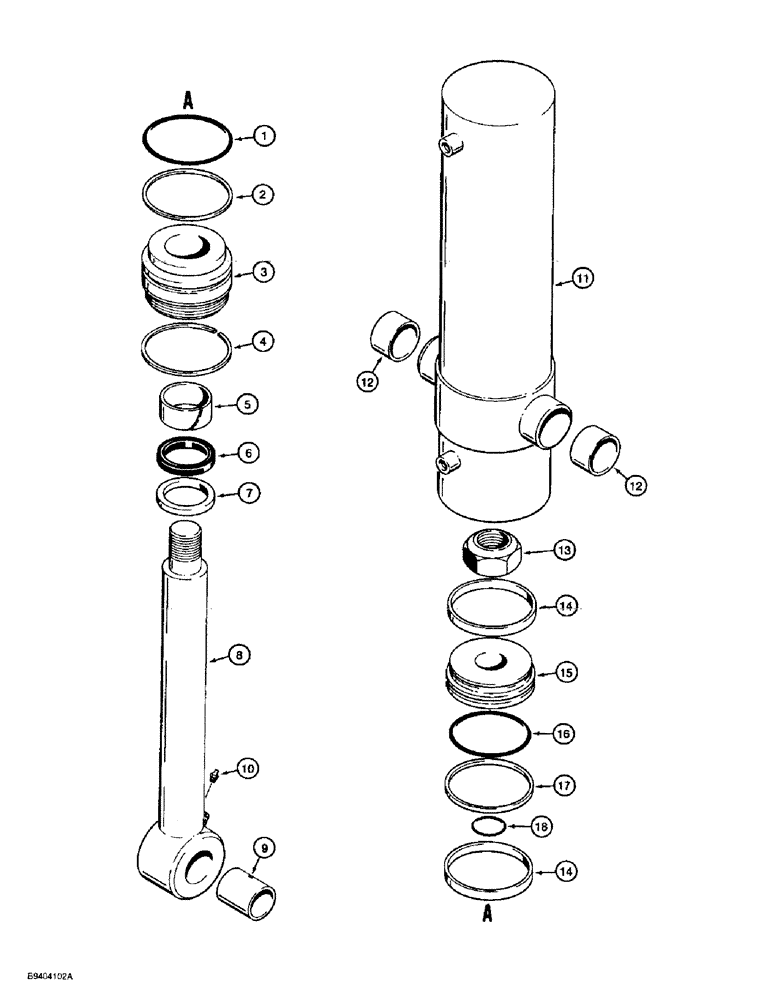

Запчасти Case 860 (8-086) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY - H672822 (08) - HYDRAULICS

H672822

CYLINDER

ASSEMBLY - 102 (4) ID xte, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

2

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

3

H438437

HEAD

GLAND - piston

1шт.

4

NSS

NOT SOLD SEPARAT

LOCK - gland, nylon

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

5

NSS

NOT SOLD SEPARAT

RING - wear, gland

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

H438436

ROD

ASSEMBLY - piston, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

9

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

- piston rod

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

1шт.

11

H438435

SLEEVE CYLINDER

TUBE - cylinder, Includes: Ref. 12

1шт.

12

105814A1

BUSHING

- cylinder tube trunnion

2шт.

13

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

15

H438434

PISTON

- cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Boom Cylinder Seal Repair Kit P/N H674686

1шт.

H674686

GASKET KIT

KIT - boom cylinder seal repair, Includes: Ref. 1, 2, 4, 5, 6, 7, 14, 16, 17, 18

1шт.
