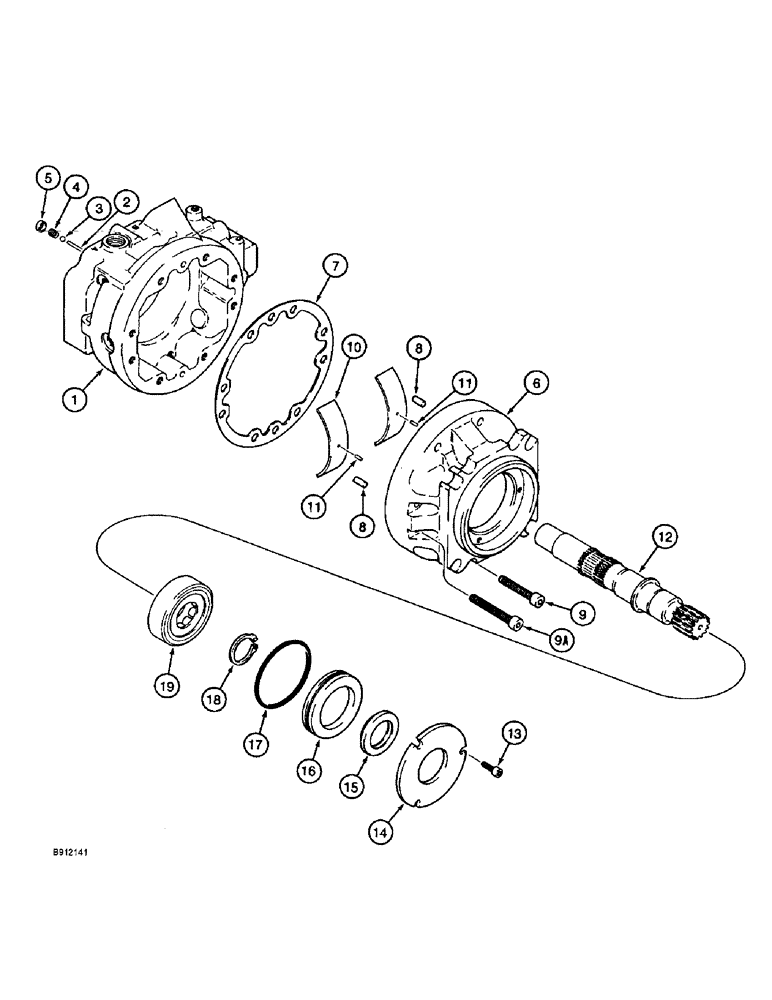

Запчасти Case 860 (8-084) - TRENCHER DRIVE MOTOR ASSEMBLY - H674755 (08) - HYDRAULICS

H674755

MOTOR

ASSEMBLY - 2-speed trencher drive, Includes: Ref. 1 - 35 Figure 8-080, 1 - 26 Figure 8-082, and 1 - 19 this Figure

1шт.

Order 244090A1 seal repair kit for major pump overhaul.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

2

438-11232

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

2шт.

3

211-1309

BALL,9/32" Dia

- check, steel, 9-32 inch diameter

2шт.

4

106545A1

ORIFICE

- check ball

2шт.

5

106544A1

OIL SEAL

RING - crush

2шт.

6

106562A1

COVER

- front, motor

1шт.

7

106557A1

GASKET

- front cover

1шт.

8

F23124

AXLE PIN

PIN - locating

2шт.

9

106560A1

SCREW

- hex socket head, special, short

4шт.

9a

106564A1

SCREW

- hex socket head, special, long

4шт.

10

106521A1

BEARING

- cradle

2шт.

11

106520A1

PIN

- cradle, Serial Range: bearing-cover

2шт.

12

106554A1

SHAFT

- splined, drive motor

1шт.

13

106555A1

SCREW

- hex socket head, special, cover plate

3шт.

14

105659A2

SUPPORT

CARRIER - shaft seal, seal retainer

1шт.

15

105660A1

SEAL

- oil, splined shaft

1шт.

16

105661A1

LARGE PLATE

PLATE - seal

1шт.

17

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

Seal retainer -151, 70 Duro, 2.987" ID x .103" Thk

1шт.

18

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

19

105658A2

ROLLER BEARING

- roller, splined shaft

1шт.
