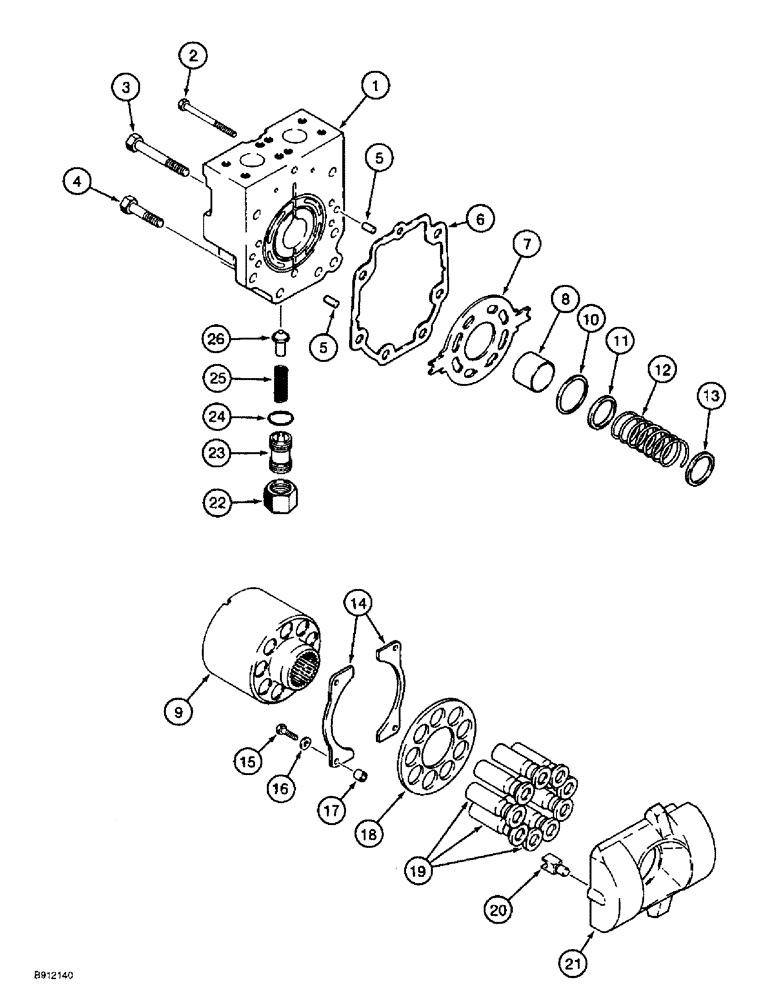

Запчасти Case 860 (8-082) - TRENCHER DRIVE MOTOR ASSEMBLY - H674755 (08) - HYDRAULICS

H674755

MOTOR

ASSEMBLY - 2-speed trencher drive, Includes: Ref. 1 - 35 Figure 8-080, 1 - 26 this Figure, and 1 - 19 Figure 8-084

1шт.

Order 244090A1 seal repair kit for major pump overhaul.

1шт.

1

106571A2

PLUG

COVER - end

1шт.

2

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

- M8 x 70; 10.9

1шт.

3

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- M12 x 70; 10.9

4шт.

4

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

2шт.

5

F23124

AXLE PIN

PIN - locating

2шт.

6

106541A1

GASKET

- end cover

1шт.

7

106529A1

LARGE PLATE

PLATE - valve

1шт.

8

105667A1

BEARING

- journal

1шт.

106522A1

BLOCK

ASSEMBLY - cylinder, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

14

106525A1

BEARING

- slipper guide

2шт.

15

106528A1

SCREW

BOLT - special, bearing slipper guide

4шт.

16

106527A1

WASHER

- special, bearing slipper guide

4шт.

17

106526A2

SPACER

- bearing slipper guide

4шт.

18

106524A1

GUIDE

- slipper

1шт.

19

106523A1

PISTON

- cylinder block

9шт.

20

196507A1

PIVOT

PIN - swash plate, replaces 106530A1 pin, must be used when 196506A1 swash plate is ordered

1шт.

21

196506A1

PLATE

- swash, replaces 106532A1 plate, order 196507A1 pin, (item 20) when replacing swash plate

1шт.

22

106553A1

SPECIAL NUT

- special, relief valve plug

1шт.

23

106550A1

PLUG

- charge relief valve

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug

1шт.

25

106551A1

SPRING

- poppet

1шт.

26

106552A1

VALVE

POPPET - charge relief valve

1шт.
