Запчасти Case 860 (8-080) - TRENCHER DRIVE MOTOR ASSEMBLY - H674755 (08) - HYDRAULICS

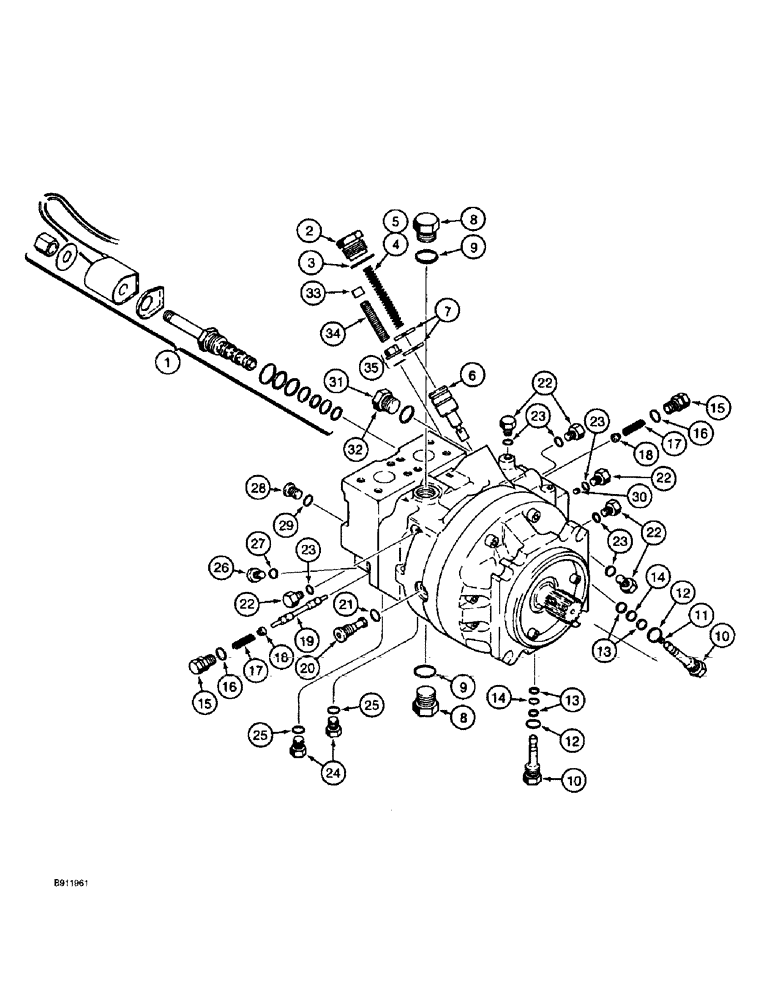

Схема запчастей Case 860 - (8-080) - TRENCHER DRIVE MOTOR ASSEMBLY - H674755 (08) - HYDRAULICS
32
18
22
15
8
12
3
29
10
14
23
28
2
13
19
26
35
23
13
1
12
20
33
17
27
34
17
6
9
10
5
25
11
22
9
30
22
6
16
22
25
4
21
23
23
31
14
15
24
8
18
7

№

Артикул

Название

Примечание

Количество

H674755

MOTOR

ASSEMBLY - 2-speed trencher drive, Includes: Ref. 1 - 35 this Figure, 1 - 26 Figure 8-082, and 1 - 19 Figure 8-084

1шт.

Order 244090A1 seal repair kit for major pump overhaul.

1шт.

1

106558A2

VALVE

- solenoid electrical, 2 speed drive motor

1шт.

2

106536A1

PLUG

- servo piston

2шт.

3

244085A1

O-RING

- plug

2шт.

4

106537A1

SPRING

- piston, upper servo

1шт.

5

106540A1

SPRING

- piston, lower servo

1шт.

106538A1

PISTON

ASSEMBLY - servo, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.

7

106539A1

SEALING RING

SEAL - servo piston

2шт.

8

86625138

PLUG,7/18" - 14

Includes Ref. 9 Hex Soc, 7/8"-14 ORB

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

10

106570A1

PLUG

- orifice

2шт.

11

106567A1

SCREEN

- filter, orifice plug

1шт.

13

106569A2

RING, SNAP

RING - backup, O-ring

4шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

15

106549A1

PLUG

- shuttle valve spool

2шт.

17

106548A1

SPRING

- shuttle spool

2шт.

18

106547A1

GUIDE

- spring

2шт.

19

106546A1

SPOOL

- shuttle valve

1шт.

20

106531A1

PIN

- special, motor housing

1шт.

22

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 23 Hex Hd, 7/16"-20 ORB

5шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

76349

PLUG,9/16" - 18 ORB

Incl. 25 Hex Hd, 9/16"-18 ORB

2шт.

26

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 27 Hex Soc, 7/16"-20 ORB

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

28

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 29 Hex Soc, 9/16"-18 ORB

1шт.

30

105703A1

PLUG

- orifice, special, if used, Includes: Ref. 32

1шт.

31

214389

PLUG,3/4" - 16 ORB

Includes Ref. 32 Hex Hd, 3/4"-16 ORB

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

106533A1

CAP

COVER - set screw

2шт.

34

244084A1

SET SCREW

SCREW - set, special

2шт.

35

106535A1

SPECIAL NUT

NUT - lock, includes seal

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 38
