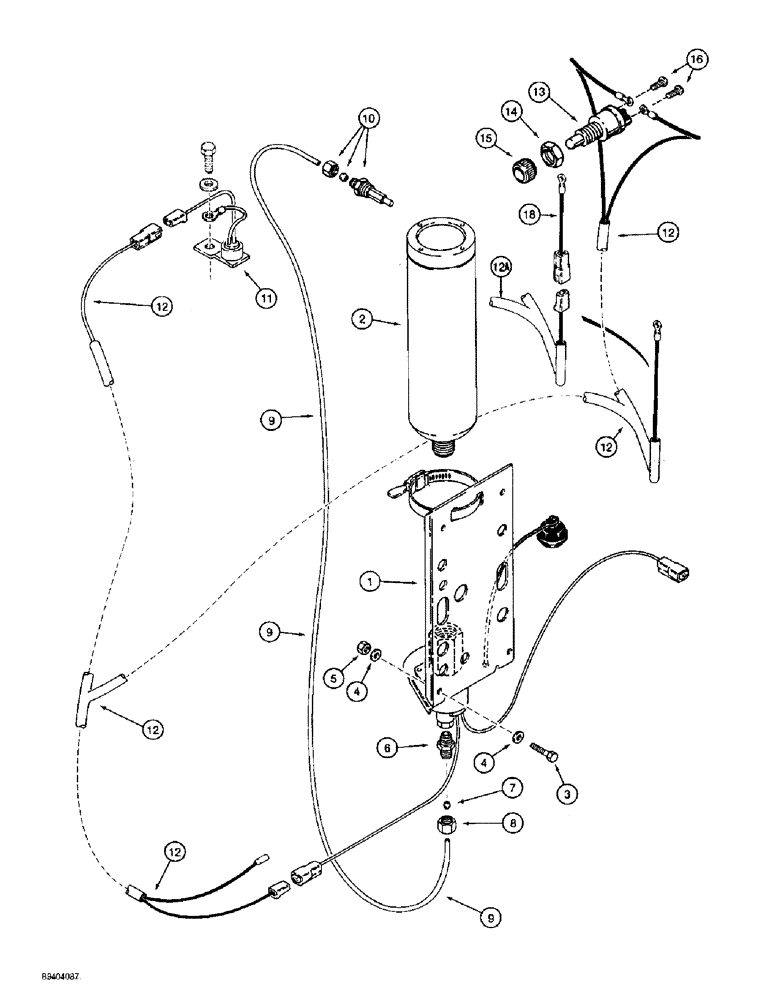

Запчасти Case 860 (2-10) - COLD START SYSTEM (02) - ENGINE

1

A172116

VALVE

ASSEMBLY - cold start, 3 cc, includes bracket, component parts not serviced separately

1шт.

2

A171940

CYLINDER

- starting fluid

1шт.

3

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

- hex, 7/16 NC x 3/4 inch

3шт.

4

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

6шт.

5

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

3шт.

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

9

H434360

TUBE,3.18 mm OD x 1730 mm L

- 1728 mm (68 inch) long, valve (1730 mm) long,to nozzle

1шт.

10

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, dual orifice, component parts not serviced separately

1шт.

11

A171943

IGNITION SWITCH

SENDER - temperature, circuit breaking, includes lead wires, uses existing intake manifold mounting hardware

1шт.

12

H434361

HARNESS

- cold start, no longer available, for service order item 12A, 109493A1 harness

1шт.

12a

109493A1

HARNESS

- cold start

1шт.

L72776

SWITCH

- push button, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - push button, cold start

1шт.

14

H275784

JAM NUT

- hex, special, jam, special

1шт.

15

D73741

NUT

- hex, special, special

1шт.

16

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- machine, round head slotted, No. 10 NF x 1/4 inch

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

109391A1

ADAPTER

WIRE - adapter

1шт.
