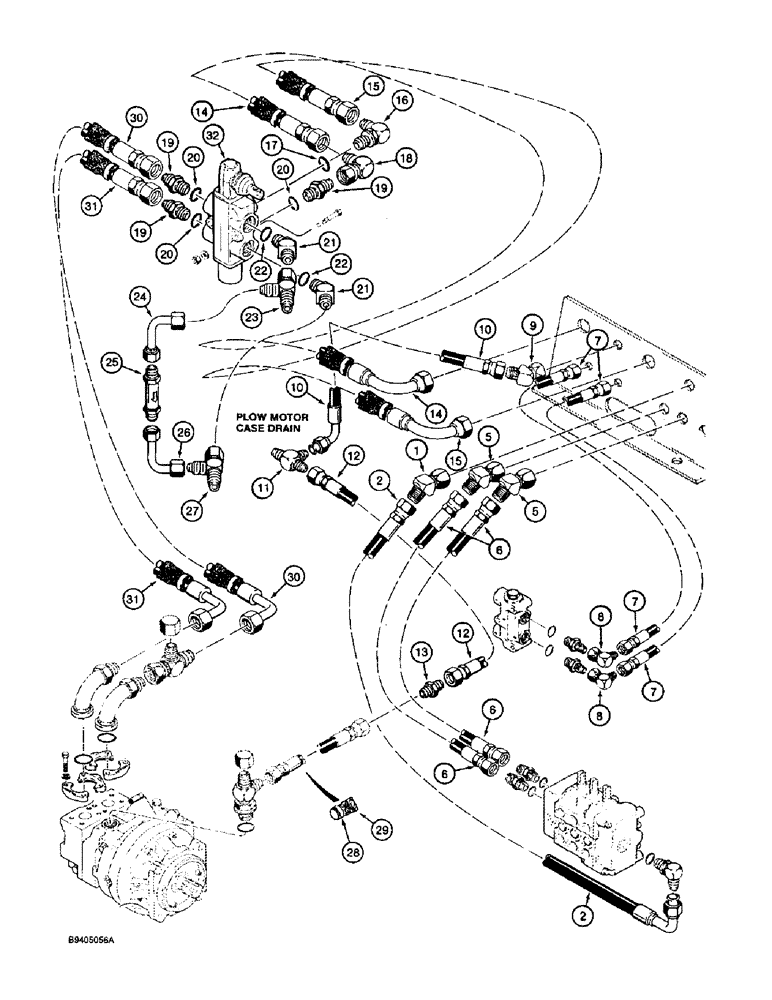

Запчасти Case 860 (8-079A) - REVERSED QUAD HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.

2

H438246

HOSE ASSY.

HOSE - 660 mm (26 inch) long, rear bulkhead plate to plow control valve

1шт.

Included with basic plow attachment. See Figures 8-100 - 8-104 for basic plow hydrauic circuits.

1шт.

3

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel, included with the basic trencher attachment, see Figure 8-072 for basic trencher hydraulic circuits

4шт.

4

109184A1

HOSE

- 380 mm long, plow control

6шт.

5

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

2шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

6

106519A1

HOSE

- 660 mm (26 inch) long, valve drain and power, Serial Range: beyond-bulkhead

2шт.

Included with basic plow attachment. See Figures 8-100 - 8-104 for basic plow hydrauic circuits.

1шт.

7

108930A1

HOSE

- 940 mm (37 inch) long, trencher boom lockout, Serial Range: valve-bulkhead

2шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

9

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

10

H439398

HOSE

- 350 mm (13-3/4 inch) long, case drain tee to bulkhead case drain fitting

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

11

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

12

H439398

HOSE

- 350 mm (13-3/4 inch) long, case drain tee to straight connector

1шт.

13

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

1шт.

14

107210A1

HOSE

- 1080 mm (42-1/2 inch) long, trencher high loop, bulkhead plate to selector valve "A" port

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

15

107209A1

HOSE

- 1475 mm (58-1/16 inch) long, trencher low loop, bulkhead plate to selector valve "B" port

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 17

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Not shown

1шт.

18

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 20

3шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Not shown

1шт.

21

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, Includes: Ref. 22

2шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Not shown

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

24

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

- selector valve "E" port to check valve

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

25

L126503

VALVE, CHECK

VALVE - check

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

26

107331A1

TUBE,19.05 mm OD, 288.9, 90.7 mm Length

- selector valve "F" port to check valve

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

27

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

29

D131814

SLEEVE

- hose protector

1шт.

Included with basic quad attachment. See Figure 8-076 for standard quad hydraulic circuit.

1шт.

30

107210A1

HOSE

- 1080 mm (42-1/2 inch) long, trencher motor low loop, selector valve "D" port to motor "B" port

1шт.

31

107209A1

HOSE

- 1475 mm (58-1/16 inch) long, trencher motor high loop, selector valve "C" port to motor "A" port

1шт.
