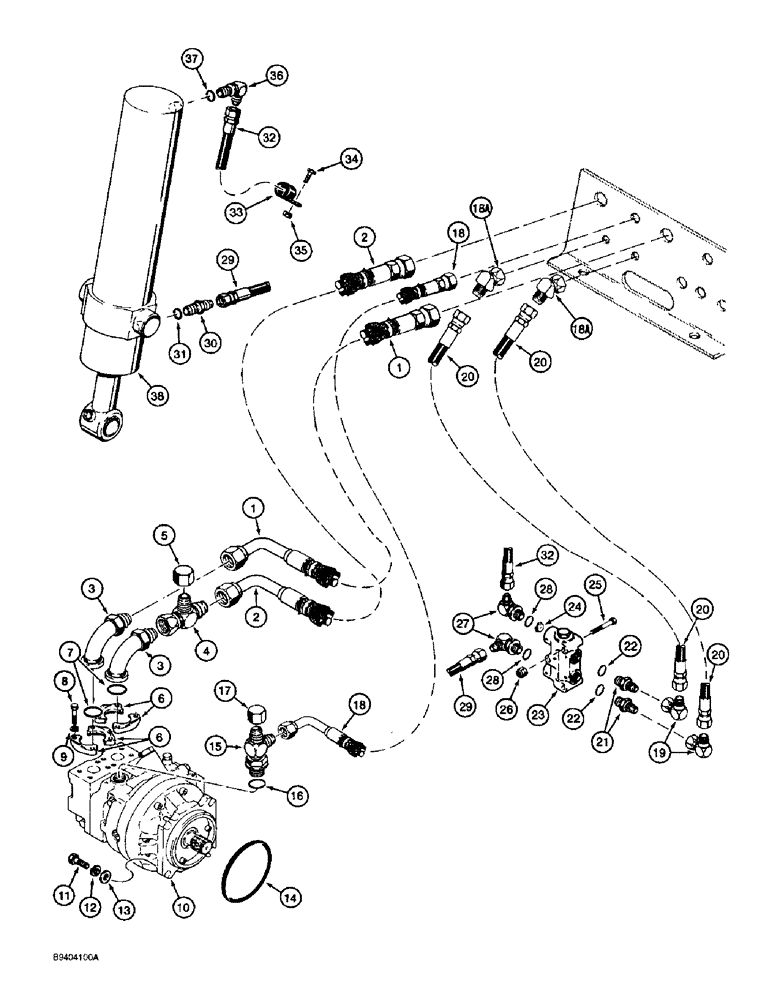

Запчасти Case 860 (8-075A) - TRENCHER DRIVE AND BOOM LIFT HYDRAULIC CIRCUITS - REAR BULKHEAD PLATE TO MOTOR & CYLINDER (OFFSET) (08) - HYDRAULICS

1

H439284

HOSE

- 935 mm (36-13/16 inch) long, trencher drive motor high loop, "A" port

1шт.

2

H439285

HOSE

- 780 mm (30-11/16 inch) long, trencher drive motor low loop, "B" port

1шт.

3

H439280

ELBOW

ADAPTER - special

2шт.

4

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch flare branch x flare x swivel

1шт.

5

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch

1шт.

6

S97224

CLAMP

- split flange, 1 inch

4шт.

7

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

8

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

10

H674755

MOTOR

ASSEMBLY - 2-speed trencher drive, parts list Figures 8-080 - 8-084

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

13

H274894

WASHER

- flat, special

4шт.

14

238-5049

O-RING,0.07" Thk x 4.986" ID, -49, Cl 5, 75 Duro

Motor to flywheel -049, 70 Duro, 4.986" ID x .070" Thk

1шт.

15

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.

18

H437994

HOSE ASSY.

HOSE - 1143 mm (45 inch) long, case drain

1шт.

18a

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel

2шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

20

H438959

HOSE

- 762 mm (30 inch) long, boom lift, bulkhead plate to lockout valve

2шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

H672547

VALVE

ASSEMBLY - lockout, parts list Figure 5-20, Includes: Ref. 24

1шт.

24

H270603

ORIFICE

PLATE - orifice, 0.055 inch, included with H672547 valve assembly, see Figure 5-20 for complete listing of valve components

1шт.

25

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, self-locking

2шт.

27

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

D81836

HOSE

- 406 mm (16 inch) long, lockout valve to trencher boom lift cylinder, rod end

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 31

1шт.

32

109641A1

HOSE

- 525 mm (20-3/4 inch) long, lockout valve to trencher boom lift cylinder, closed end

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Hose retaining 5/8", Insul, 3/8" Bolt

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 37

1шт.

38

H672822

CYLINDER

ASSEMBLY - 102 (4) ID x 419 mm (16-1/2 inch) stroke, trencher boom lift, parts list Figure 8-086, see Figure 9-042 for cylinder mounting

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
