Запчасти Case 860 (8-068) - BACKFILL BLADE LIFT AND REEL CARRIER LIFT CYLINDERS - 101644A1 (08) - HYDRAULICS

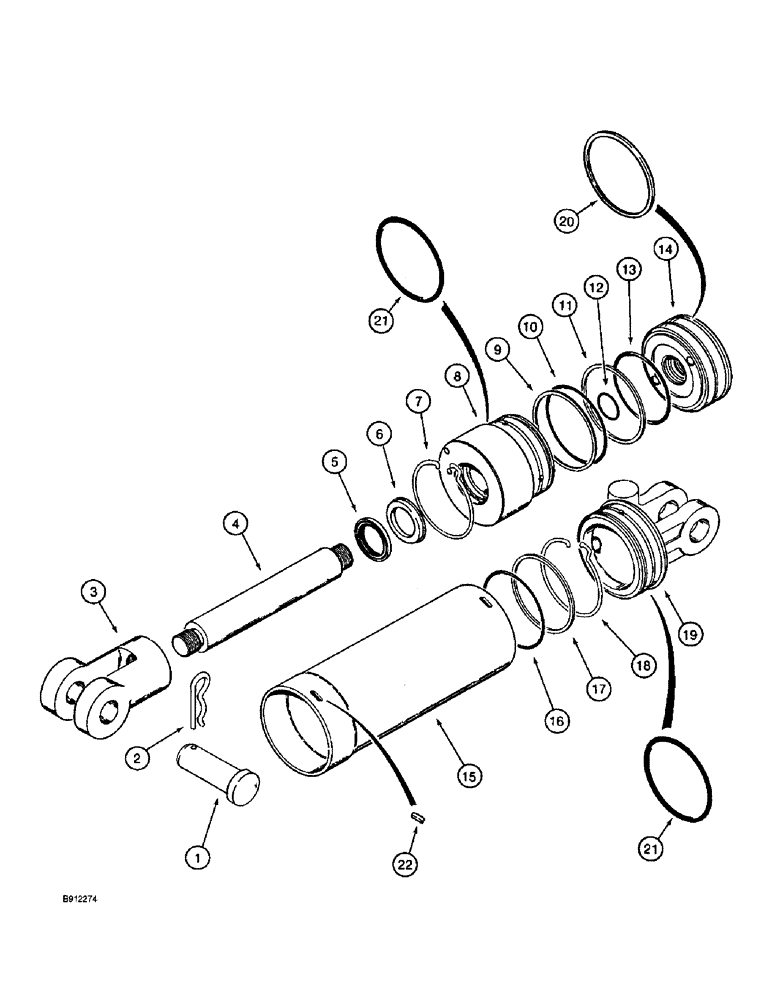

Схема запчастей Case 860 - (8-068) - BACKFILL BLADE LIFT AND REEL CARRIER LIFT CYLINDERS - 101644A1 (08) - HYDRAULICS
8
22
12
5
18
7
6
9
3
19
17
16
10
2
21
14
11
4
15
13
1
21
20

Артикул

Название

Примечание

Количество

101644A1

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, backfil blade lift and reel carrier lift, see Figure 9-084 for backfill blade lift cylinder mounting, see Figure 9-112 for reel carrier lift cylinder mounting, Includes: Ref. 1 - 22

1-3шт.

1

N14001

CLEVIS PIN

PIN - clevis, cylinder retaining

2шт.

2

1978738C1

HAIR PIN COTTER

3/16"

2шт.

3

102694A1

END

- cylinder rod

1шт.

4

102692A1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

7

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

8

102686A1

GLAND

- cylinder end

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup,gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

14

102682A1

PISTON

- cylinder

1шт.

15

102690A1

TUBE

- cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - cylinder tube

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, cylinder tube o ring

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

18

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

19

102689A1

HEAD

- cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - tube to gland and head

2шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - slot, locking ring

2шт.

Part of Cylinder Seal Repair Kit P/N H673837

1шт.

H673837

GASKET KIT

KIT - cylinder seal repair, Includes: Ref. 5, 6, 7, 9, 10, 11, 12, 13, 16, 17, 18, 20, 21, 22

1шт.
