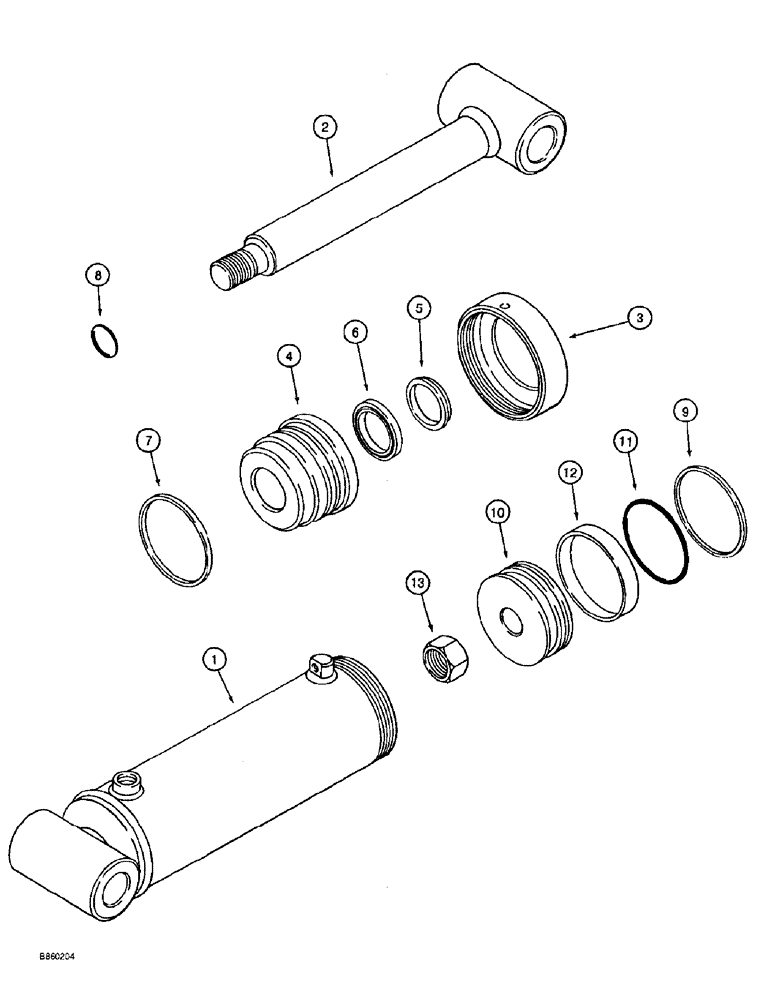

Запчасти Case 860 (8-066) - BACKFILL BLADE ANGLE CYLINDER ASSEMBLY - H670935 (08) - HYDRAULICS

H670935

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, backfil blade angle, see Figure 9-084 for mounting, Includes: Ref. 1 - 13

2шт.

1

N13626

TUBE

- cylinder

1шт.

2

N13627

ROD

- piston

1шт.

3

H242545

COLLAR

- gland locking

1шт.

4

H254763

GLAND

- cylinder

1шт.

5

H222935

WIPER SEAL

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

6

H247809

SEAL ASSY.

SEAL - U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

7

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

8

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

9

N13629

SEAL

RING - sealing

1шт.

10

N13625

PISTON

- cylinder

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

11

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N N13628

1шт.

12

N13630

STRIP

RING - wear, piston

1шт.

13

230-46116

LOCK NUT,1"-14, GA

NUT - hex, self locking, 1-14 inch

1шт.

N13628

SEAL KIT

KIT - cylinder seal repair, Includes: Ref. 5, 6, 7, 8, 10, 11

1шт.
