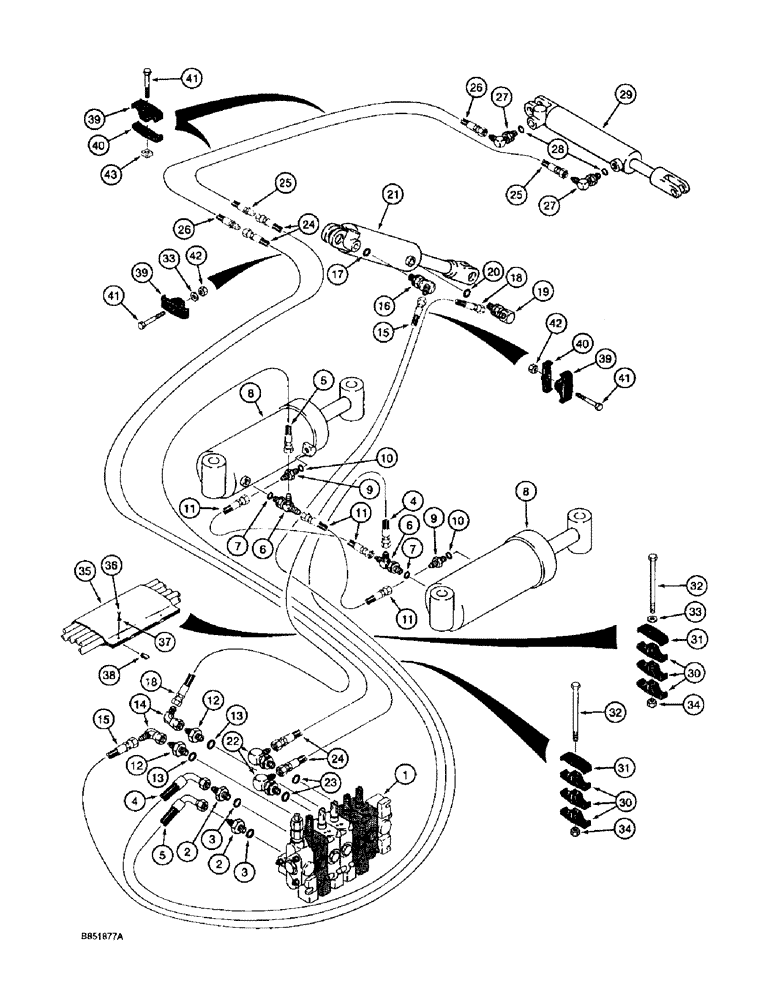

Запчасти Case 860 (8-064) - BACKFILL BLADE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672412

VALVE

ASSEMBLY - control, attachment, parts list Figures 8-018 - 8-026

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 2

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H433715

HOSE

- 3050 mm (120 inch) long, valve to right-hand backfill angle cylinder, replaces H433714 hose

1шт.

5

H433715

HOSE

- 3050 mm (120 inch) long, valve to left-hand backfill angle cylinder

1шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 7

2шт.

8

H670935

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, backfill blade angle, parts list Figure 8-066

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 10

2шт.

11

S77121

HOSE

- 508 mm (20 inch) long, angle cylinder to angle cylinder

2шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

15

H350926

HOSE,0.25" ID x 110.00", SAE 100R1A

Valve to Lift Cylinder, Closed End 0.25" ID x 110.00", SAE 100R1A

1шт.

16

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

Valve to Lift Cylinder, Rod End 0.25" ID x 122.05", SAE 100R1A

1шт.

19

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

101644A1

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, backfill blade lift, parts list Figure 8-068

1шт.

22

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

H433716

HOSE

- 2650 mm (104 inch) long, valve to tilt cylinder hoses

2шт.

25

H256503

HOSE ASSY.

HOSE - 1422 mm (56 inch) long, valve hose to backfill blade tilt cylinder, rod end

1шт.

26

H171017

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm, SAE 100R1

6.35 mm ID x 1016.00 mm, Valve to Hose Backfill Blade Tilt Cylinder, Closed End

1шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 28

2шт.

29

101645A1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, backfill blade tilt, parts list Figure 8-070

1шт.

30

D120679

CLAMP,Tube, 1/2"

- hoses

6шт.

31

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- plastic, hose

2шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

34

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

35

H374678

FLAP

GUARD - rubber, hoses

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

37

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

38

H346650

NUT

- U-type, 5/16 inch NC

2шт.

39

D120679

CLAMP,Tube, 1/2"

- hoses

4шт.

40

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- plastic, hose

3шт.

41

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

42

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

43

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
