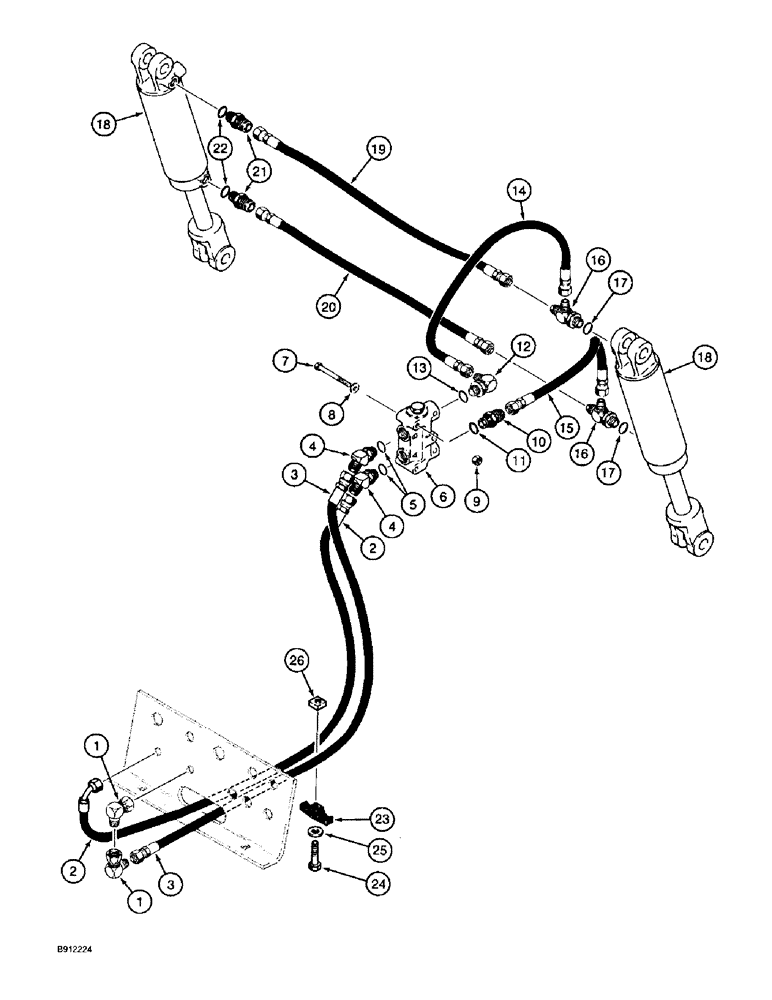

Запчасти Case 860 (8-062) - REEL CARRIER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel, at rear bulkhead plate, see Figure 8-006 for attachment lift hydraulic circuit to rear bulkhead plate

2шт.

2

104355A1

HOSE

- 4420 mm (174 inch) long, rear bulkhead plate to reel carrier lockout valve "A" port

1шт.

3

104356A1

HOSE

- 4420 mm (174 inch) long, rear bulkhead plate to reel carrier lockout valve "B" port

1шт.

4

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H672547

VALVE

ASSEMBLY - lockout, parts list Figure 5-20

1шт.

7

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

8

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

9

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, reel carrier lockout valve "C" port, Includes: Ref. 11

1шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Reel carrier lockout valve "D" port, Incl. Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

104354A1

HOSE

- 381 mm (15 inch) long, reel carrier lockout valve "D" port to right-hand reel carrier lift cylinder, closed end

1шт.

15

104353A1

HOSE

- 345 mm (13-9/16 inch) long, reel carrier lockout valve "C" port to right-hand reel carrier lift cylinder, rod end

1шт.

16

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

- 9/16-18 flare branch x flare x 3/4-16 inch adj O-ring, Includes: Ref. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

101644A1

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, reel carrier lift, parts list Figure 8-068

2шт.

19

104352A1

HOSE

- 590 mm (23-1/4 inch) long, cylinder to cylinder, closed end

1шт.

20

104351A1

HOSE

- 622 mm (24-1/2 inch) long, cylinder to cylinder, rod end

1шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

H438314

CLAMP

- hose

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

26

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
