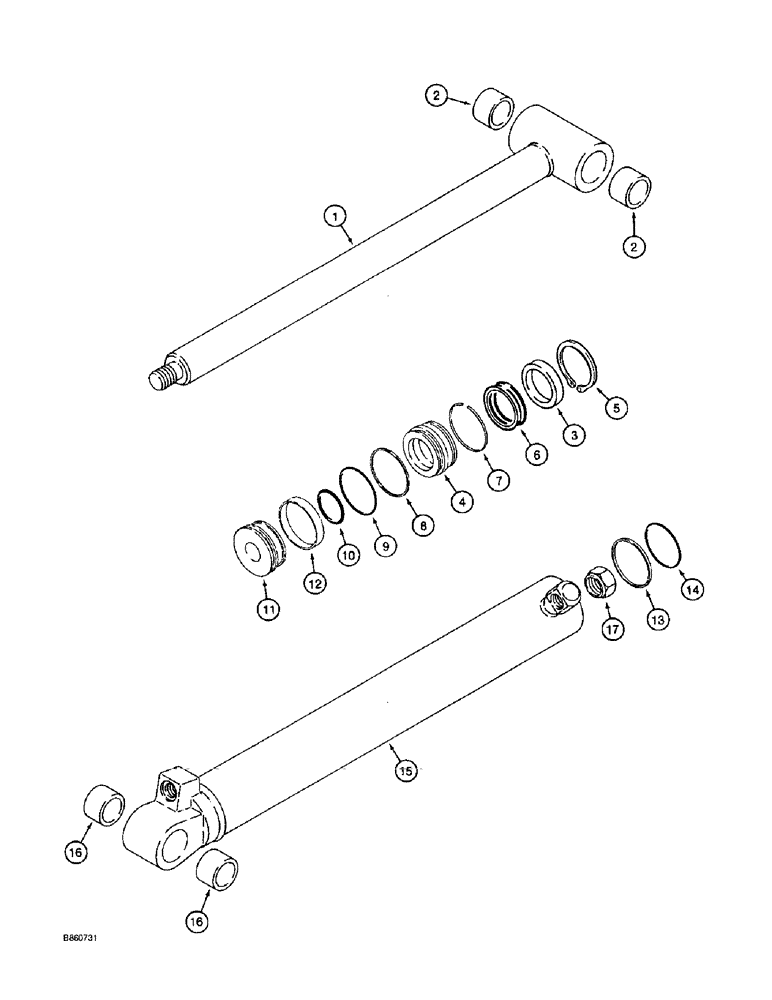

Запчасти Case 860 (8-060) - BACKHOE BUCKET CYLINDER ASSEMBLY - H672570 (08) - HYDRAULICS

H672570

CYLINDER

ASSEMBLY - 75 (3) ID x 654 mm (25-3/4 inch) stroke, backhoe bucket, see Figure 9-034 for mounting, Includes: Ref. 1 - 17

1шт.

N13930

JACK PISTON

ROD ASSEMBLY - piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

N13921

BUSHING

- piston rod

2шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

4

N13928

GLAND

- cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

7

H52761

RING

- retaining, gland

1шт.

8

H745760

WASHER

RING - backup, gland O-ring

1шт.

9

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

Piston, inner -226, 90 Duro, 1.984" ID x .139" Thk

1шт.

11

N13927

PISTON

- cylinder

1шт.

12

H252833

RING

- wear, piston

1шт.

13

H120188

RING

- backup, outer

1шт.

14

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

Piston, outer -231, 90 Duro, 2.609" ID x .139" Thk

1шт.

N13929

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

16

N13921

BUSHING

- piston rod

2шт.

17

232-24018

LOCK NUT,1 1/8"-12, GB

NUT, LOCK, 1 1/8"-12, GB

1шт.

N13931

SEAL KIT

KIT - cylinder seal repair, includes 3, 5-10, and 12-14

1шт.
