Запчасти Case 860 (8-059A) - BACKHOE DIPPER CYLINDER ASSEMBLY - 138234A1 (08) - HYDRAULICS

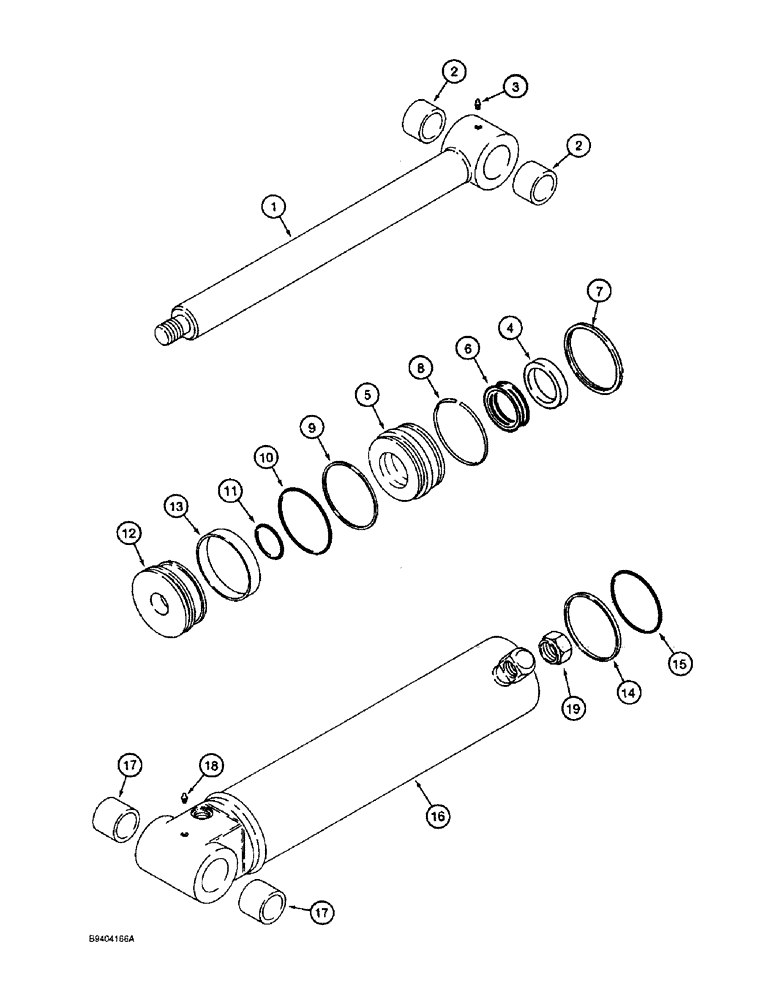

Схема запчастей Case 860 - (8-059A) - BACKHOE DIPPER CYLINDER ASSEMBLY - 138234A1 (08) - HYDRAULICS
18
13
17
8
5
17
7
3
6
10
16
2
12
4
9
11
1
14
2
15
19

Артикул

Название

Примечание

Количество

138234A1

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, see figure 9-034 for mounting, if used, Includes: Ref. 1 - 19

1шт.

142757A1

ROD

ASSEMBLY - piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

178307A1

BUSHING

- piston rod

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

5

142754A1

GLAND

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

7

T52488

SPECIAL NUT

- special, gland retaining

1шт.

8

A41171

RING, LOCKING

RING - locking, gland

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

9

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

10

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

11

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

Piston, inner -226, 90 Duro, 1.984" ID x .139" Thk

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

12

N13922

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N 292230A1

1шт.

142755A1

TUBE

ASSEMBLY - cylinder, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

17

N13921

BUSHING

- piston rod

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

292230A1

SEAL KIT

- cylinder seal repair, Includes: Ref. 4, 6, 8, 9, 10, 11, 13, 14, 15

1шт.
