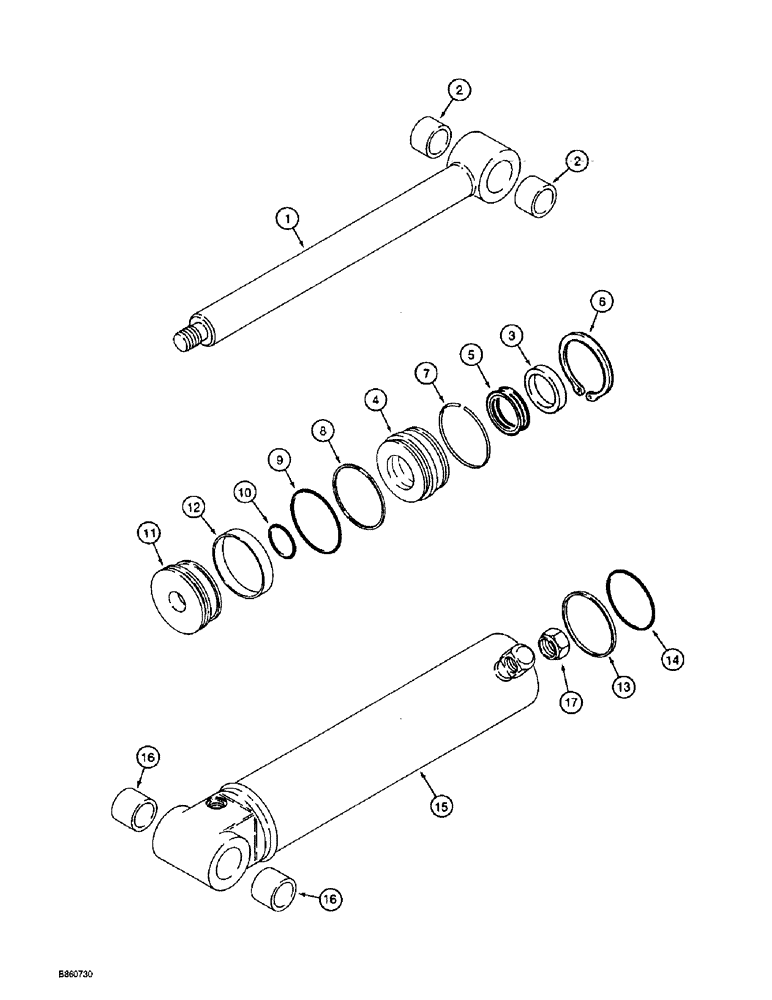

Запчасти Case 860 (8-058) - BACKHOE DIPPER CYLINDER ASSEMBLY - H672569 (08) - HYDRAULICS

H672569

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, see figure 9-034 for mounting, if used, Includes: Ref. 1 - 17

1шт.

N13925

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

N13921

BUSHING

- piston rod

2шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

4

N13923

GLAND

- cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

7

A41171

RING, LOCKING

RING - locking, gland

1шт.

8

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

Inner (Replaces L105925) -226, 90 Duro, 1.984" ID x .139" Thk

1шт.

11

N13922

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

N13924

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

16

N13921

BUSHING

- piston rod

2шт.

17

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, (Replaces 131-190) 1 1/4"-12, GB

1шт.

N13926

SEAL KIT

KIT - cylinder seal repair, Includes: Ref. 3, 5, 6, 7, 8, 9, 10, 12, 13, 14

1шт.
