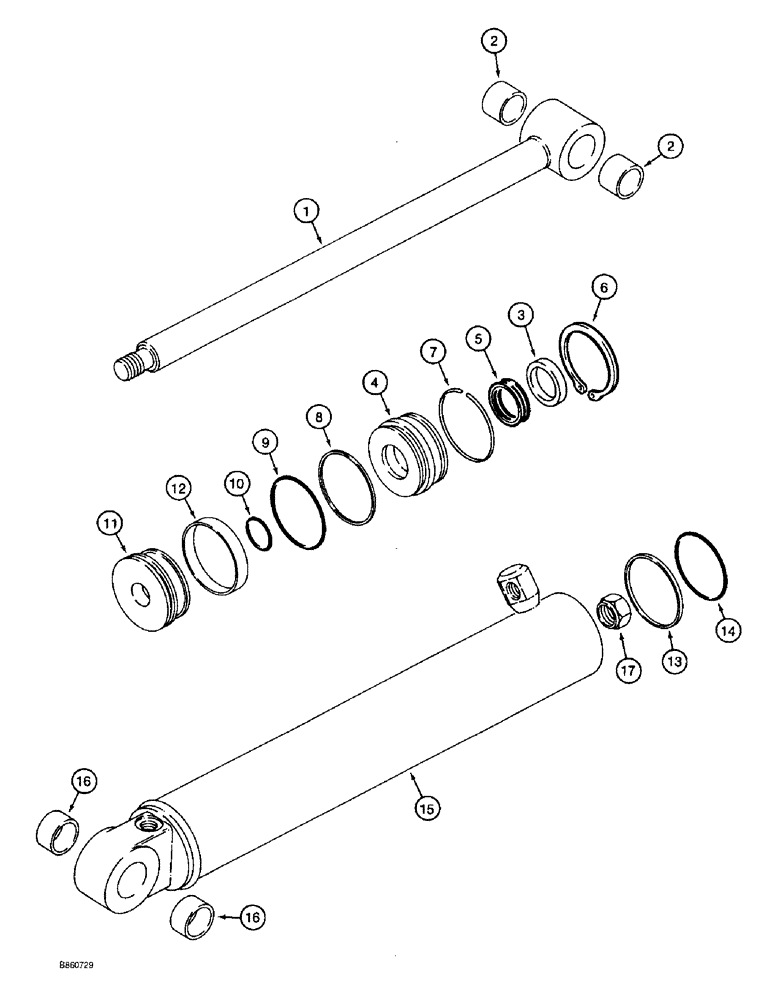

Запчасти Case 860 (8-056) - BACKHOE BOOM CYLINDER ASSEMBLY - H672568 (08) - HYDRAULICS

H672568

CYLINDER

ASSEMBLY - 102 (4) ID x 622 mm (24-1/2 inch) stroke, backhoe boom, see figure 9-030 for mounting, Includes: Ref. 1 - 17

1шт.

N13918

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

N13921

BUSHING

- piston rod

2шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

4

N13916

GLAND

- cylinder

1шт.

5

H221440

SEAL

- piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

7

A41171

RING, LOCKING

RING - locking, gland

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

8

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

10

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Piston, inner -224, 90 Duro, 1.734" ID x .139" Thk

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

11

N13915

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

13

H221440

SEAL

- piston rod, outer

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N N13919

1шт.

N13917

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

16

N13920

CYLINDER BLOCK

BUSHING - tube

2шт.

17

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

N13919

SEAL KIT

KIT - cylinder seal repair, Includes: Ref. 3, 5, 6, 7, 8, 9, 10, 12, 13, 14

1шт.
