Запчасти Case 860 (8-054) - BACKHOE SWING CYLINDER ASSEMBLY - H672571 (08) - HYDRAULICS

H672571

CYLINDER ASSY.

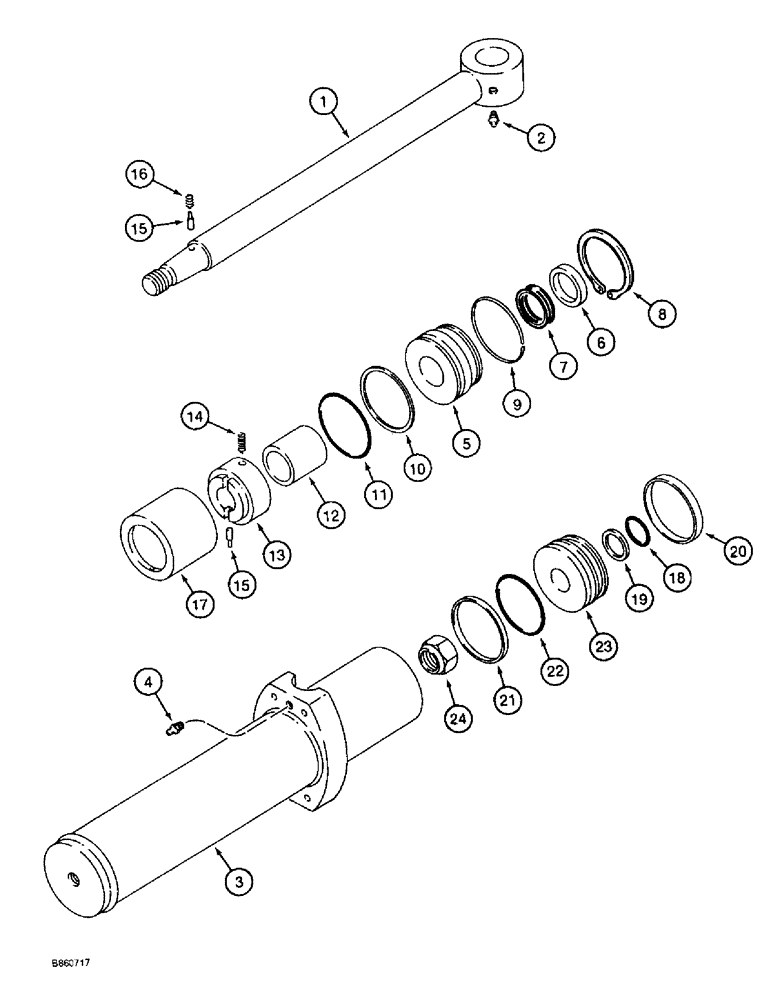

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 341 mm (13-7/16 inch) stroke, backhoe swing, see Figure 9-026 for mounting, Includes: Ref. 1 - 24

2шт.

N13909

ROD

ASSEMBLY - piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

N13908

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

5

N13907

GLAND

- cylinder

1шт.

6

A27564

OIL SEAL

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

7

H220558

SEAL

- rod

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

8

103-11312

SNAP RING,#312, Ext

Ring, Snap, , gland #312, Ext

1шт.

9

A44708

RING, LOCKING

RING - locking

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

12

N13913

SPACER

- gland

1шт.

13

N13911

RETAINER

- sleeve

1шт.

14

A47976

SPRING

- sleeve retainer

1шт.

15

N13912

PIN

- locking

2шт.

16

N13905

SPRING

- locking pin

1шт.

17

N13910

SLEEVE

- cylinder, dampening

1шт.

18

238-5217

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

Piston, inner -217, 70 Duro, 1.171" ID x .139" Thk

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, piston o ring, inner

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

20

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N N13914

1шт.

23

N13906

PISTON

- cylinder

1шт.

24

232-24018

LOCK NUT,1 1/8"-12, GB

NUT, LOCK, 1 1/8"-12, GB

1шт.

N13914

SEAL KIT

KIT - cylinder seal repair, Includes: Ref. 6, 7, 9, 10, 11, 18, 19, 20, 21, 22

1шт.
