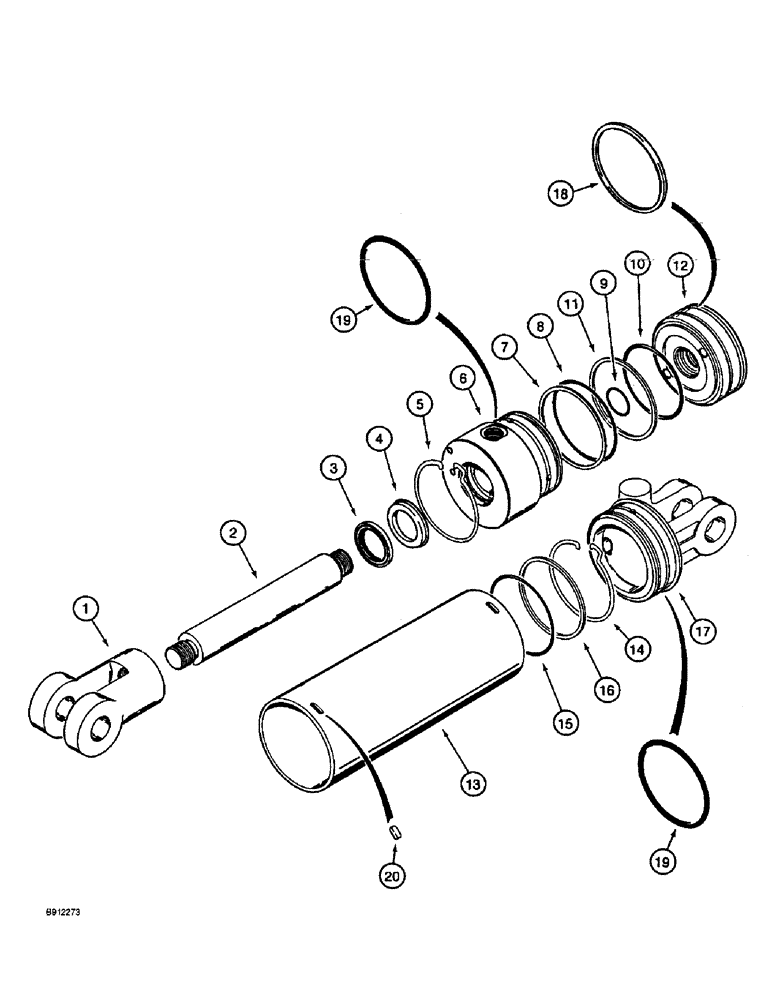

Запчасти Case 860 (8-052) - BACKHOE STABILIZER CYLINDER ASSEMBLY - 101646A1 (08) - HYDRAULICS

101646A1

CYLINDER

ASSEMBLY - 95 (3-3/4) ID x 406, (16 inch) stroke, backhoe stabilizer, Includes: Ref. 1 - 20

1шт.

1

102913A1

END

- cylinder rod

1шт.

2

N13937

PISTON ROD

ROD - piston

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

5

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

6

102914A1

BEARING

GLAND - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston, slip-fit

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

12

102911A1

PISTON

- cylinder

1шт.

13

102912A1

TUBE

- cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head o ring

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

17

N13935

HEAD (CYLINDER)

HEAD - cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - tube to gland and head

2шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - slot, locking ring

2шт.

Part of Cylinder Seal Repair Kit P/N H673839

1шт.

H673839

SEAL

KIT - cylinder seal repair, Includes: Ref. 3, 4, 5, 7, 8, 9, 10, 11, 14, 15, 16, 18, 19, 20

1шт.
