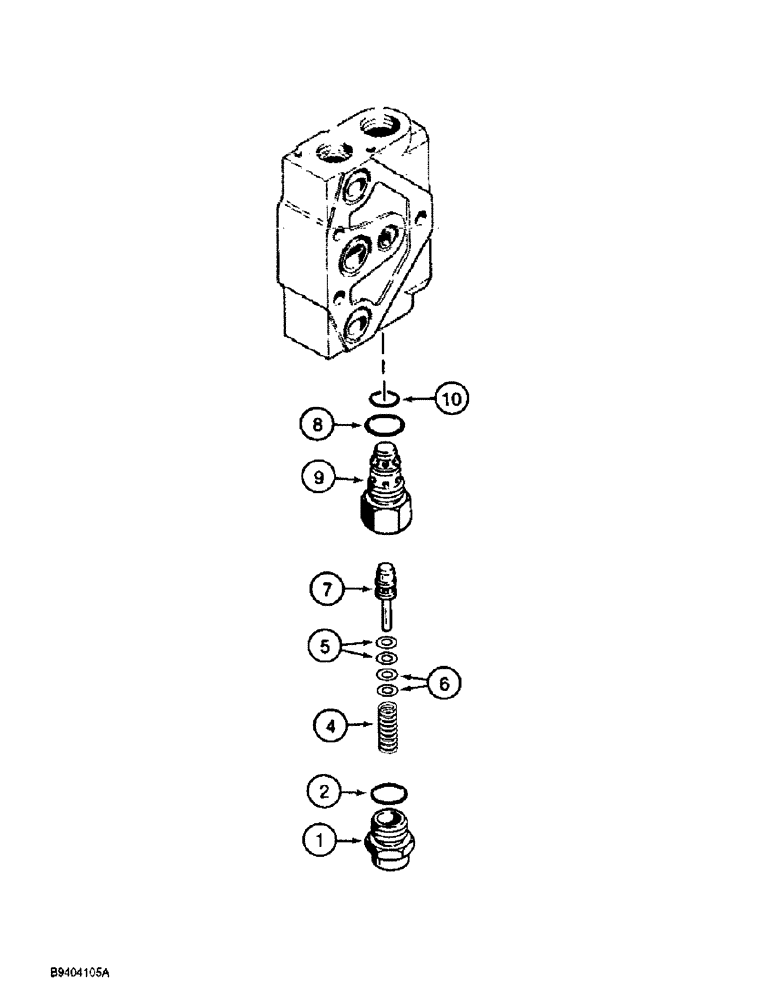

Запчасти Case 860 (8-051K) - BACKHOE CONTROL VALVE ASSY - H672270 (CI) - CIRCUIT RELIEF VALVE ASSEMBLIES (08) - HYDRAULICS

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 21 figure 8-051A, 1 - 10 figure 8-051C, 1 - 32 figure 8-051E, 1 - 20 figure 8-051G, 1 - 22 figure 8-051I, and 1 - 10 this figure

1шт.

N14045

VALVE

ASSEMBLY - circuit relief, 3200 psi, backhoe boom section "B" port and backhoe dipper and swing sections "A" and "B" ports, Includes: Ref. 1 - 10

5шт.

N14058

VALVE

ASSEMBLY - circuit relief, 1600 psi, backhoe boom section "A" port, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - relief valve

1шт.

2

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

Relief valve cap -117, 70 Duro, .799" ID x .103" Thk

1шт.

4

H437231

SPRING

- relief valve

1шт.

5

H398644

BLOCK

SHIM - 0.08 mm (.003 inch) thick

1шт.

6

H398651

BLOCK

SHIM - 0.51 mm (.02 inch) thick

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

8

H398685

O-RING

- relief valve, large

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Relief -016, 90 Duro, .614" ID x .070" Thk

1шт.
