Запчасти Case 860 (8-051I) - BACKHOE CONTROL VALVE ASSY - H672270 - DUAL CONTROL & STABILIZER LEVERS (08) - HYDRAULICS

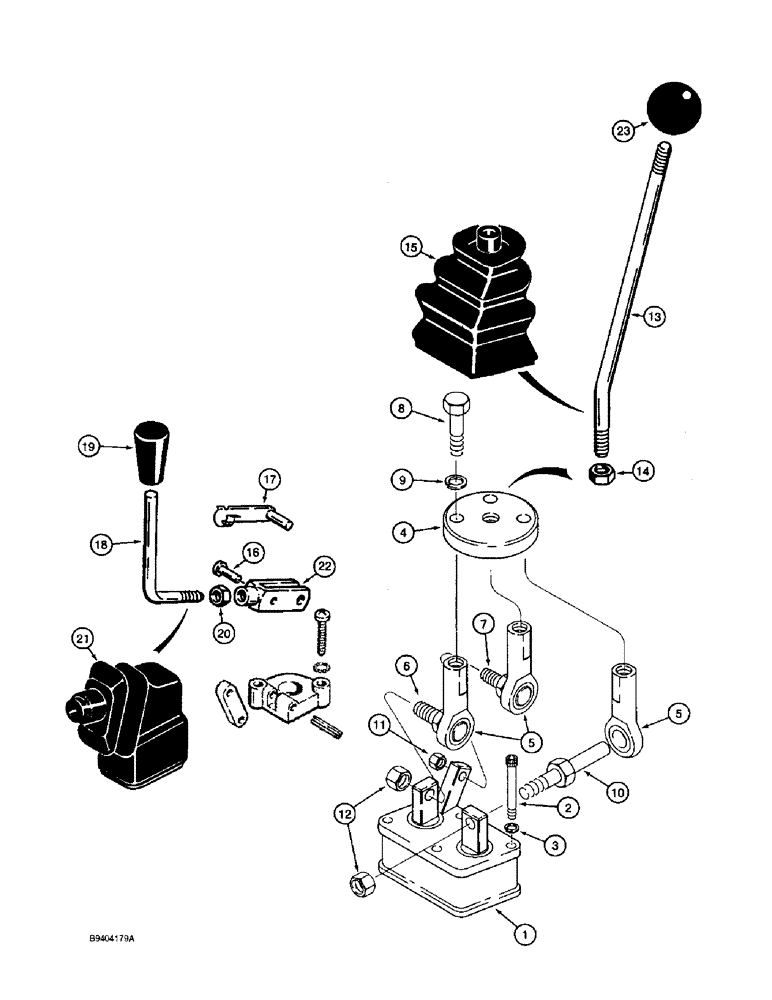

Схема запчастей Case 860 - (8-051I) - BACKHOE CONTROL VALVE ASSY - H672270 - DUAL CONTROL & STABILIZER LEVERS (08) - HYDRAULICS
15
12
21
22
16
6
2
9
20
17
5
18
4
1
23
8
11
10
3
5
7
13
19
14

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 21 figure 8-051A, 1 - 10 figure 8-051C, 1 - 32 figure 8-051E, 1 - 20 figure 8-051G, 1 - 22 this figure, and 1 - 10 figure 8-051K

1шт.

H674022

BRACKET

ASSEMBLY - mounting, dual control lever, Includes: Ref. 1 - 12

2шт.

1

H437230

BRACKET

- mounting, dual control lever

1шт.

2

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

4шт.

3

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

4шт.

H674595

ADAPTER

PLATE ASSEMBLY - dual control lever, Includes: Ref. 4 - 9

1шт.

4

H437228

DISC

PLATE - dual control lever

1шт.

5

H437227

END

- rod, Serial Range: adapter-guide

1шт.

6

H437226

END

- rod, adapter to spool eye, with pivot stud, 8 - 1.25 mm, use with one of item 12, H438214 nut

1шт.

7

H437225

END

- rod, adapter to bracket, with pivot stud, 6 - 1.0 mm, use with item 11, H438213 nut

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

9

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

3шт.

10

H437229

GUIDE

STUD - pivot, 8 - 1.25 mm, use with one of item 12, H438214 nut

1шт.

11

H438213

NUT

- hex, special, 6 - 1.0 mm, use with item 7, H437225 rod end

1шт.

12

H438214

NUT

- hex, special, 8 - 1.25 mm, use one with item 6, H437226 rod end, and one with item 10, H437229 pivot stud

2шт.

H674023

HANDLE

LEVER ASSEMBLY - dual control, Includes: Ref. 13 - 15

2шт.

13

H438215

LEVER

- dual control

1шт.

14

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

15

H438216

BOOT

- lever

1шт.

H674696

HANDLE

LEVER ASSEMBLY - 65 degree, stabilizer, Includes: Ref. 16 - 22

2шт.

16

H438220

PIN

- clevis, special

1шт.

17

N14124

CIRCLIP

CLIP - clevis

1шт.

H674697

LEVER

ASSEMBLY - control, stabilizer, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - stabilizer

1шт.

19

H398867

GRIP

KNOB - stabilizer lever

1шт.

20

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

21

N14125

BOOT

- control lever

1шт.

22

H438219

CLEVIS

- control lever

1шт.

23

CAS31375

KNOB

- dual control lever

2шт.

Выбрано товаров: 29
