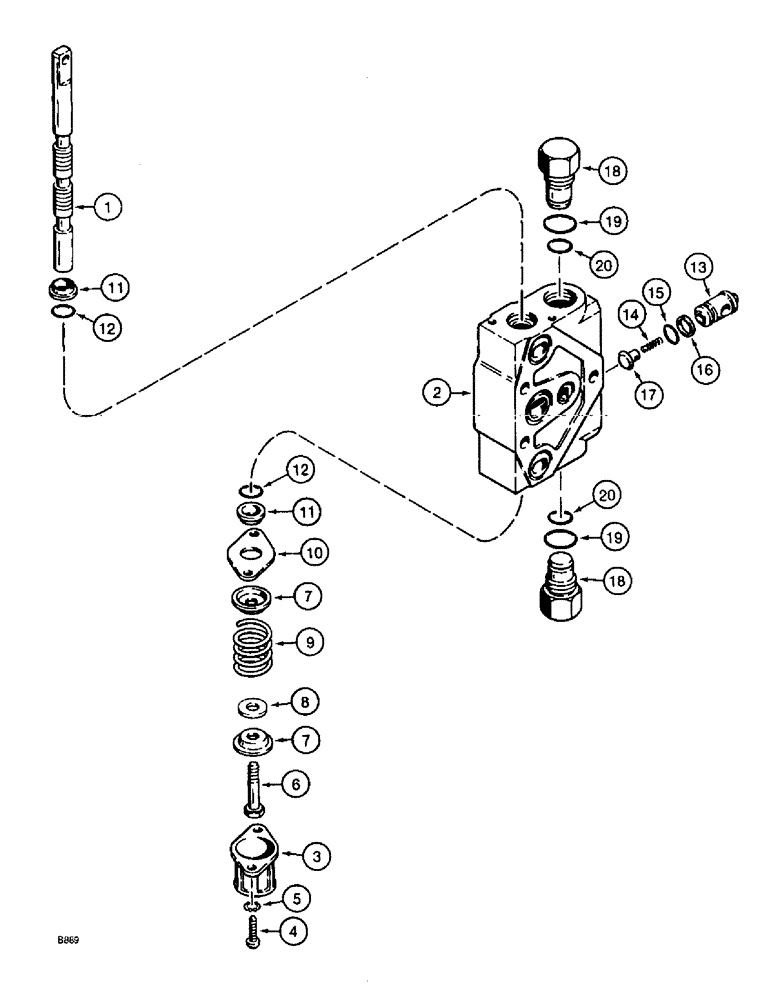

Запчасти Case 860 (8-051G) - BACKHOE CONTROL VALVE ASSY - H672270 BOOM, BUCKET, DIPPER & SWING SECTION (08) - HYDRAULICS

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 21 figure 8-051A, 1 - 10 figure 8-051C, 1 - 32 figure 8-051E, 1 - 20 this figure, 1 - 22 figure 8-051I, and 1 - 10 figure 8-051K

1шт.

H674691

KNIFE SECTION

SECTION ASSEMBLY - bucket, Includes: Ref. 1 - 20

1шт.

H674693

KNIFE SECTION

SECTION ASSEMBLY - dipper or swing, includes N14045 circuit relief valve assemblies, Includes: Ref. 1 - 20

2шт.

See Figure 8-051K for circuit relief valve assemblies.

1шт.

H674694

KNIFE SECTION

SECTION ASSEMBLY - boom, includes N14045 and N14058 circuit relief valve assemblies, Includes: Ref. 1 - 20

1шт.

See Figure 8-051K for circuit relief valve assemblies.

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve section, Includes: Ref. 3 - 5

1шт.

3

H438212

CAP

- spool

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

2шт.

6

H401190

SCREW

- special, spool end

1шт.

7

H401208

SEAT PLATE

SEAT - spring

2шт.

8

1329639C1

SPACER

- spring seat

1шт.

9

H401216

SPRING

- spool

1шт.

10

N14042

SHIN

RETAINER - seal

1шт.

11

N14043

WIPER SEAL

SEAL - wiper

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

13

H438207

GUIDE

POPPET - load check

1шт.

14

H438206

SPRING

- load check

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

N14047

GASKET

RING - backup, load check

1шт.

17

H438205

VALVE

GUIDE - load check

1шт.

N14057

PLUNGER ASSY.

PLUG ASSEMBLY - section, if used, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

19

H398685

O-RING

- large

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
