Запчасти Case 860 (8-051A) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 - MANUFACTURED BY COMMERCIAL INTERTECH (CI) (08) - HYDRAULICS

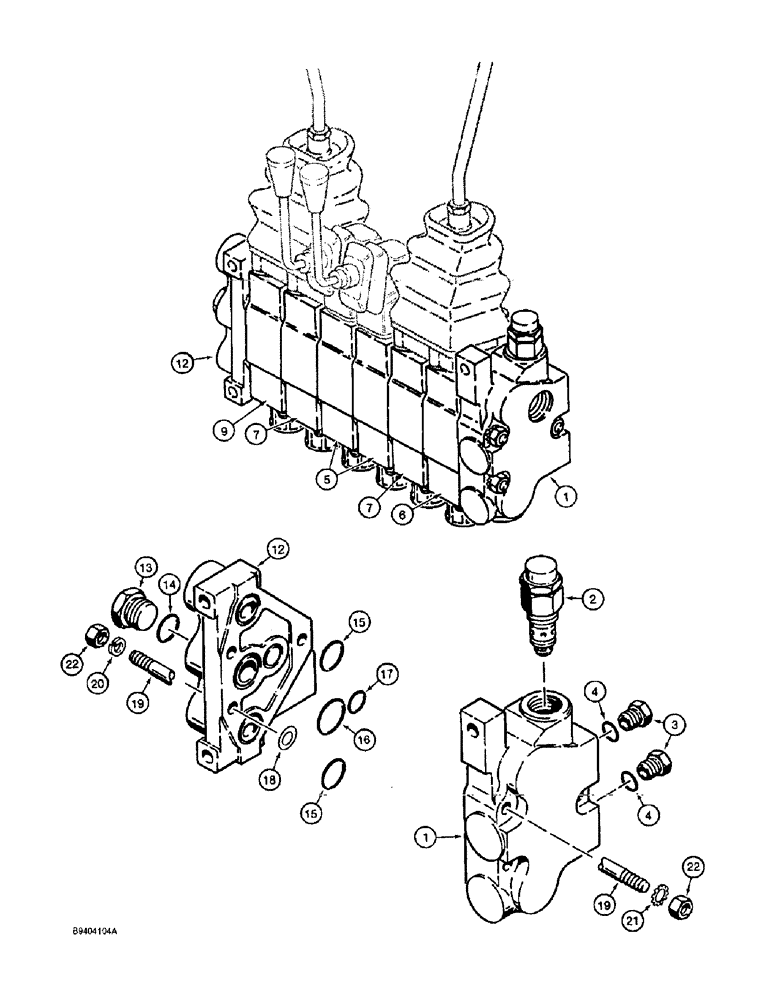

Схема запчастей Case 860 - (8-051A) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 - MANUFACTURED BY COMMERCIAL INTERTECH (CI) (08) - HYDRAULICS
20
12
16
14
4
5
4
15
19
22
9
1
15
12
22
6
17
18
19
7
1
7
13
3
21
2

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 21 this figure, 1 - 10 figure 8-051C, 1 - 32 figure 8-051E, 1 - 20 figure 8-051G, 1 - 22 figure 8-051I, and 1 - 10 figure 8-051K, includes levers and boots

1шт.

For control valve levers and boots see Figure 8-051I.

1шт.

1

N14032

KNIFE SECTION

SECTION ASSEMBLY - inlet, Includes: Ref. 2 - 4

1шт.

2

N14645

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, parts list figure 8-51C

1шт.

3

76349

PLUG,9/16" - 18 ORB

Inlet section, Incl. 4 Hex Hd, 9/16"-18 ORB

2шт.

5

H674692

HYD VALVE SECTION

SECTION ASSEMBLY - stabilizer, parts list figure 8-051E, Includes: Ref. 8

2шт.

6

H674691

KNIFE SECTION

SECTION ASSEMBLY - bucket, parts list figure 8-051G, Includes: Ref. 8

1шт.

7

H674693

KNIFE SECTION

SECTION ASSEMBLY - dipper or swing, parts figure 8-051G, Includes: Ref. 8

2шт.

8

N14045

VALVE

ASSEMBLY - circuit relief, 3200 PSI, backhoe dipper and swing sections "A" and "B" parts, parts list figure 8-051K, not shown

4шт.

9

H674694

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list figure 8-051G, Includes: Ref. 10 and 11

1шт.

10

N14058

VALVE

ASSEMBLY - circuit relief, 1600 PSI, backhoe boom section "A" port, parts list figure 8-051K, not shown

1шт.

11

N14045

VALVE

ASSEMBLY - circuit relief, 3200 PSI, backhoe boom section "B" port, parts list figure 8-051K, not shown

1шт.

N14036

KNIFE SECTION

SECTION ASSEMBLY - outlet, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

SECTION - outlet

1шт.

13

86625138

PLUG,7/18" - 14

Includes Ref. 14 Hex Soc, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

H438208

O-RING

- medium

2шт.

Items 15, 16, 17, and 18 are used in all section assemblies.

1шт.

16

H438209

O-RING

- body, large

1шт.

Items 15, 16, 17, and 18 are used in all section assemblies.

1шт.

17

H438210

O-RING

- body, small

1шт.

Items 15, 16, 17, and 18 are used in all section assemblies.

1шт.

18

H438211

SHIM

- body

1шт.

Items 15, 16, 17, and 18 are used in all section assemblies.

1шт.

N14041

SET

KIT - tie rod, Includes: Ref. 19 - 22

3шт.

19

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - external tooth lock, 3/8 inch

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
