Запчасти Case 860 (8-049A) - BACKHOE CONTROL VALVE ASSY - H672270 (KONTAK)-DUAL CONTROL & STABILIZER LEVERS W/BALL JOINT & PIVOTS (08) - HYDRAULICS

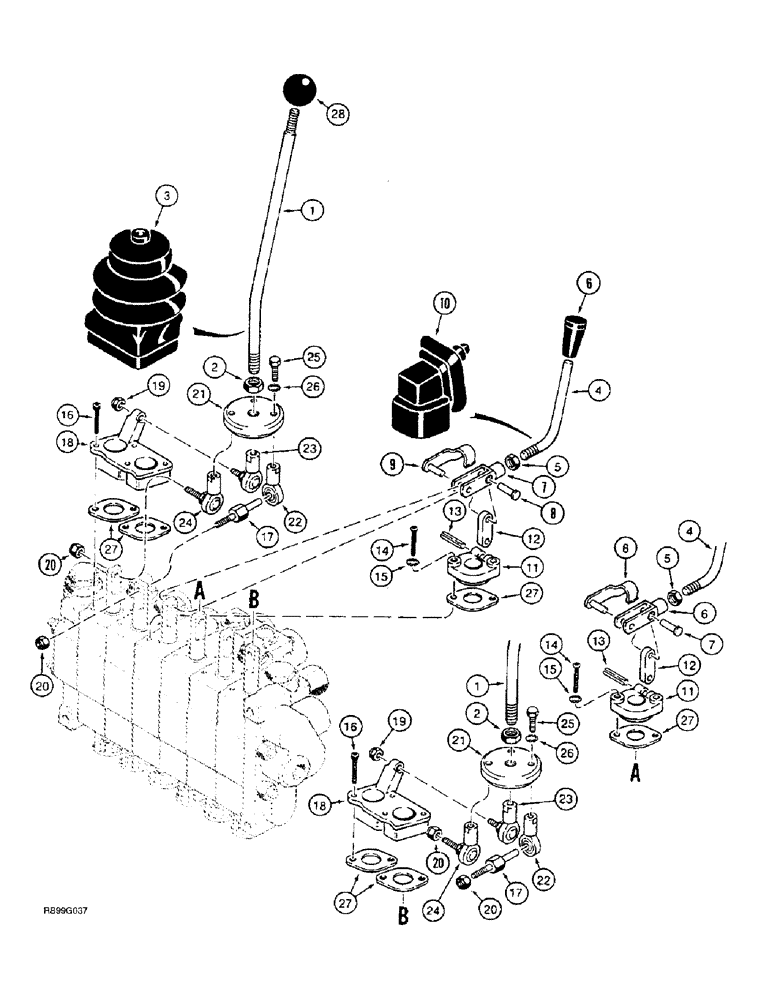

Схема запчастей Case 860 - (8-049A) - BACKHOE CONTROL VALVE ASSY - H672270 (KONTAK)-DUAL CONTROL & STABILIZER LEVERS W/BALL JOINT & PIVOTS (08) - HYDRAULICS
15
18
27
10
2
9
14
19
1
5
22
3
12
13
25
4
13
26
11
17
7
11
27
16
12
15
6
26
19
8
27
17
16
20
7
22
5
23
27
21
1
24
20
18
2
6
20
23
4
8
20
14
28
2
21
24

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 18 figure 8-040, 1 - 10 figure 8-042, 1 - 32 figure 8-044, 1 - 20, 8-046, 1 - 26 figure 8-048, 1 - 28 this figure, and 1 - 10 figure 8-050

1шт.

H674023

HANDLE

LEVER ASSEMBLY - dual control, Includes: Ref. 1 - 3

2шт.

1

H438215

LEVER

- dual control

1шт.

2

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

3

H438216

BOOT

- lever

1шт.

H674024

HANDLE

LEVER ASSEMBLY - control, Includes: Ref. 4 - 10

2шт.

H674697

LEVER

ASSEMBLY - control, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

LEVER - stabilizer

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

6

H398867

GRIP

KNOB - lever

1шт.

7

H438219

CLEVIS

- control lever

1шт.

8

H438220

PIN

- clevis, special

1шт.

9

N14124

CIRCLIP

CLIP - clevis

1шт.

10

N14125

BOOT

- control lever

1шт.

H674596

BRACKET

ASSEMBLY - mounting, stabilizer lever, Includes: Ref. 11 - 15

2шт.

11

H438217

BRACKET

- mounting, lever

1шт.

12

H438218

LINK

- lever

1шт.

13

H438219

CLEVIS

- control lever

1шт.

14

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- machine, pan head slotted, 1/4 NC x 1-1/4 inch

2шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

2шт.

H674022

BRACKET

ASSEMBLY - mounting, dual control lever, Includes: Ref. 16 - 20

2шт.

16

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

4шт.

17

H437229

GUIDE

STUD - pivot, 8 - 1.25 mm

1шт.

18

H437230

BRACKET

- mounting, dual control lever

1шт.

19

H438214

NUT

- hex, special, 8 - 1.25 mm

2шт.

20

H438213

NUT

- hex, special, 6 - 1.0 mm

1шт.

H674595

ADAPTER

PLATE ASSEMBLY - dual control lever, Includes: Ref. 21 - 26

2шт.

21

H437228

DISC

PLATE - dual control lever

1шт.

22

H437227

END

- rod, Serial Range: adapter-guide

1шт.

23

H437225

END

- rod, Serial Range: adapter-bracket

1шт.

24

H437226

END

- rod, adapter to spool eye

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

3шт.

27

N14042

SHIN

RETAINER - seal

6шт.

28

CAS31375

KNOB

- lever

2шт.

Выбрано товаров: 35
