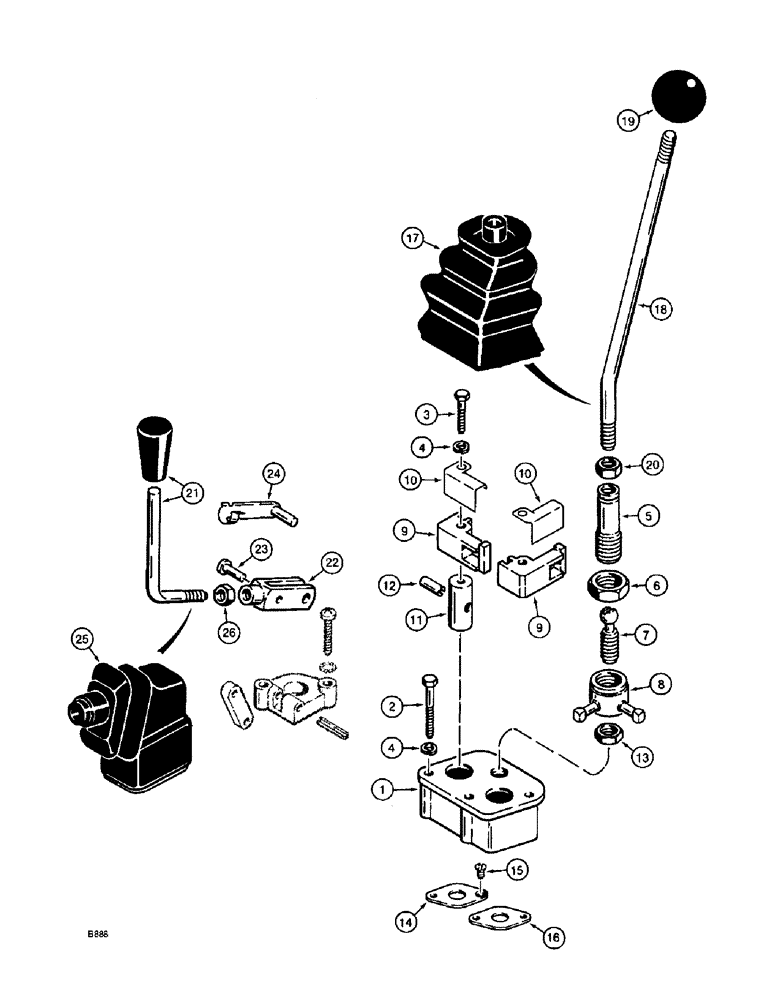

Запчасти Case 860 (8-048) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 (KONTAK) - DUAL CONTROL AND STABILIZER LEVERS (08) - HYDRAULICS

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 18 figure 8-040, 1 - 10 figure 8-042, 1 - 32 figure 8-044, 1 - 20, 8-046, 1 - 26 this figure, 1 - 28 figure 8-049A, and 1 - 10 figure 8-050

1шт.

1

N14056

BRACKET

- dual control

2шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

N14051

KIT

BLOCK ASSEMBLY - pivot, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

COLUMN - control lever

1шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

BALL - threaded, column

1шт.

8

NSS

NOT SOLD SEPARAT

PIVOT - block

1шт.

9

N14053

ADAPTER

CONNECTOR - control bracket

4шт.

10

N14059

COVER

- connector

4шт.

11

N14054

ADAPTER

- control bracket

4шт.

12

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

4шт.

13

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

14

N14055

SEAL

PLATE - seal

2шт.

15

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, flat head slotted, 1/4 NC x 5/8 inch

2шт.

16

N14042

SHIN

RETAINER - seal

2шт.

17

N14052

BOOT

- dual control lever

2шт.

N14039

LEVER ASSY.

LEVER ASSEMBLY - dual control, Includes: Ref. 18 and 19

2шт.

18

H438215

LEVER

- dual control

1шт.

19

H398867

GRIP

KNOB - dual control lever

1шт.

20

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex, jam, 7/16 inch NC

2шт.

21

N14122

LEVER

- control valve, includes knob

2шт.

22

N14123

CLEVIS

- control lever

2шт.

23

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

24

N14124

CIRCLIP

CLIP - clevis

2шт.

25

N14125

BOOT

- control lever

2шт.

26

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
