Запчасти Case 860 (8-042) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 (KONTAK) - MAIN RELIEF VALVE ASSEMBLY (08) - HYDRAULICS

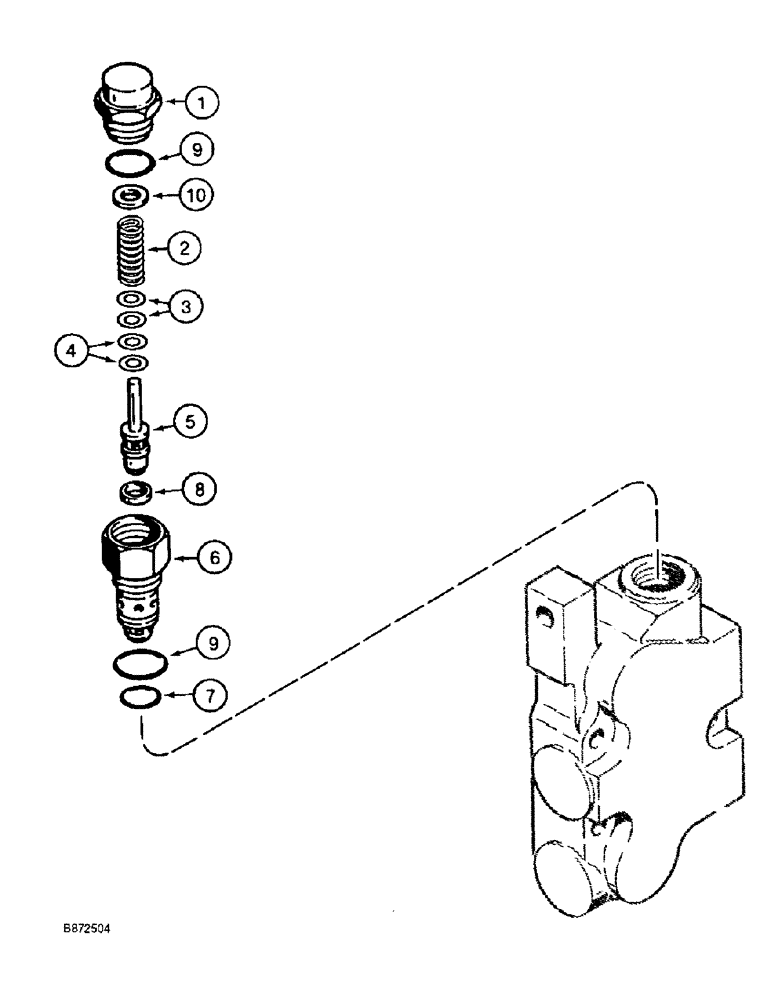

Схема запчастей Case 860 - (8-042) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 (KONTAK) - MAIN RELIEF VALVE ASSEMBLY (08) - HYDRAULICS
7
3
1
10
2
9
9
8
4
5
6

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, Includes: Ref. 1 - 18 figure 8-040, 1 - 10 this figure, 1 - 32 figure 8-044, 1 - 20, 8-046, 1 - 26 figure 8-048, 1 - 28 figure 8-049A, and 1 - 10 figure 8-050

1шт.

N14645

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

3

H398644

BLOCK

SHIM - 0.08 mm (.003 inch) thick

1шт.

4

H398651

BLOCK

SHIM - 0.51 mm (.02 inch) thick

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - relief valve cartridge

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Relief valve -016, 90 Duro, .614" ID x .070" Thk

1шт.

8

N14120

SEAL

SPACER - poppet

1шт.

9

H398685

O-RING

- relief valve

2шт.

10

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

Выбрано товаров: 12
