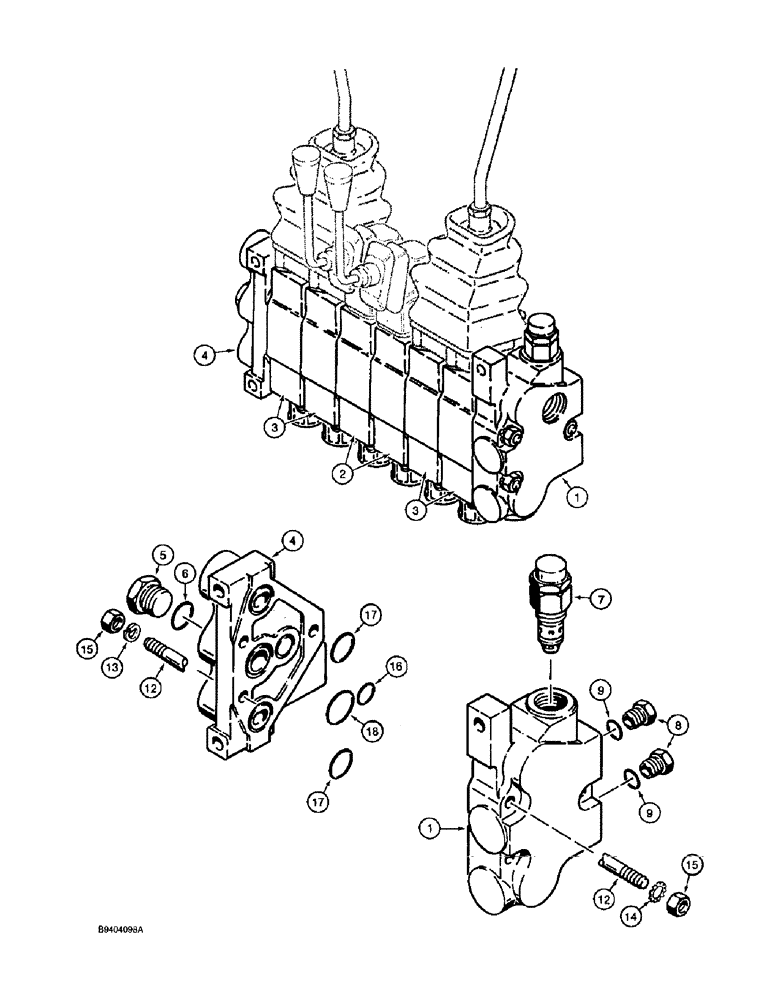

Запчасти Case 860 (8-040) - BACKHOE CONTROL VALVE ASSEMBLY - H672270 - MANUFACTURED BY KONTAK (08) - HYDRAULICS

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, also includes levers and boots, Includes: Ref. 1 - 18 this figure, 1 - 10 figure 8-042, 1 - 32 figure 8-044, 1 - 20, 8-046, 1 - 26 figure 8-048, 1 - 28 figure 8-049A, and 1 - 10 figure 8-050

1шт.

For control valve levers and boots, see Figure 8-048.

1шт.

1

N14032

KNIFE SECTION

SECTION ASSEMBLY - inlet, Includes: Ref. 4 - 6

1шт.

2

N14035

KNIFE SECTION

SECTION ASSEMBLY - stabilizer, parts list figure 8-044, Includes: Ref. 4 - 6

2шт.

3

N14033

KNIFE SECTION

SECTION ASSEMBLY - boom, bucket, dipper, and swing parts list figure 8-46, Includes: Ref. 4 - 6

4шт.

N14036

KNIFE SECTION

SECTION ASSEMBLY - outlet, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION - outlet

1шт.

5

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

N14645

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, parts list figure 8-042

1шт.

8

76349

PLUG,9/16" - 18 ORB

Inlet section, Incl. 9 Hex Hd, 9/16"-18 ORB

2шт.

10

N14045

VALVE

ASSEMBLY - circuit relief, 3200 psi, backhoe boom section "B" port and backhoe dipper, and swing sections "A" and "B" ports, parts list figure 8-50, not shown

5шт.

11

N14058

VALVE

ASSEMBLY - circuit relief, 1600 psi, backhoe boom section "A" port, parts list figure 8-050, not shown

1шт.

N14041

SET

KIT - tie rod, Includes: Ref. 12 - 15

3шт.

12

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - external tooth lock, 3/8 inch

1шт.

15

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

N14040

SEAL KIT

KIT - seal, intersection, Includes: Ref. 16 - 18

7шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

17

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Medium

2шт.

18

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
