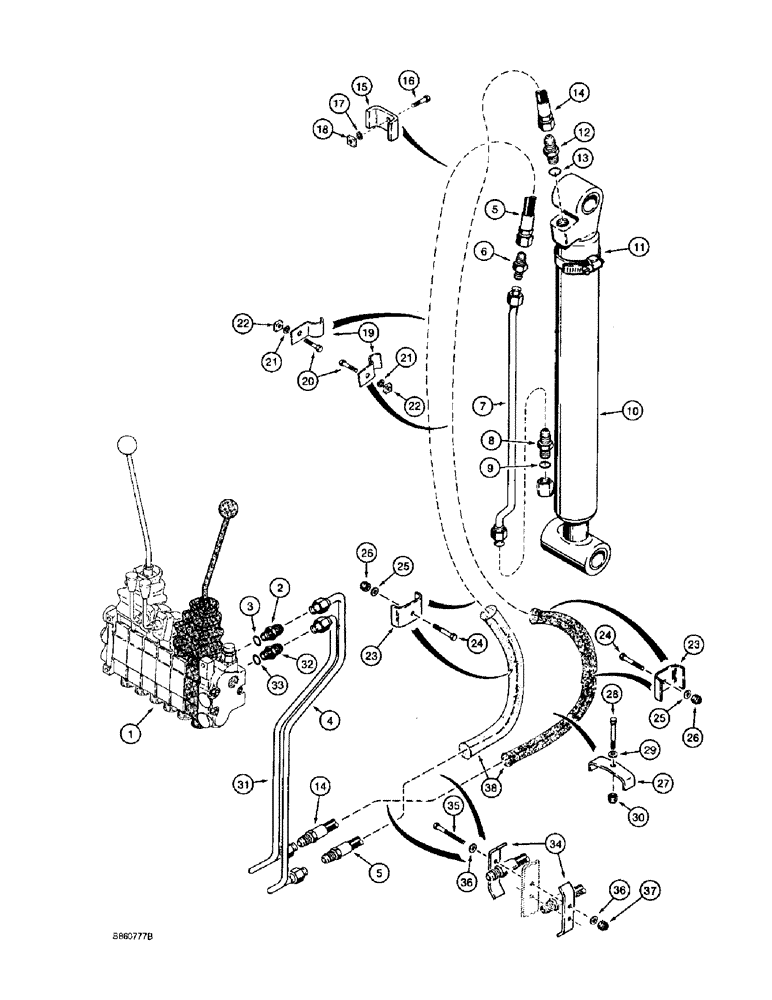

Запчасти Case 860 (8-038) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, parts listed on figures 8-040 - 8-051K

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H672390

TUBE ASSY.,15.88 mm OD

TUBE - control valve to bucket cylinder rod end hose

1шт.

5

H433857

HOSE ASSY.

HOSE - 2830 mm (111-3/8 inch) long, control valve tube to bucket cylinder rod end tube

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

1шт.

7

H672353

TUBE ASSY.,15.88 mm OD

TUBE - bucket cylinder, rod end

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

H672570

CYLINDER

ASSEMBLY - 75 (3) ID x 654 mm (25-3/4 inch) stroke, backhoe bucket, parts list figure 8-060

1шт.

11

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia, bucket cylinder tube to bucket cylinder

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

H433857

HOSE ASSY.

HOSE - 2830 mm (111-3/8 inch) long, bucket cylinder closed end tube to control valve tube

1шт.

15

H231894

CLAMP

- bucket cylinder hoses

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

19

H436769

CLAMP

- hoses

2шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

23

H231894

CLAMP

- hoses

4шт.

24

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

25

H426775

WASHER

- flat, special, hardened

4шт.

26

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

27

H433518

CLAMP

- hoses

1шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

31

H672389

TUBE ASSY.,15.88 mm OD

TUBE - bucket cylinder closed end at control valve

1шт.

32

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

H233304

CLAMP

- hoses

4шт.

35

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

4шт.

36

H426775

WASHER

- flat, special, hardened

8шт.

37

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

38

D131814

SLEEVE

- hose protector

2шт.
