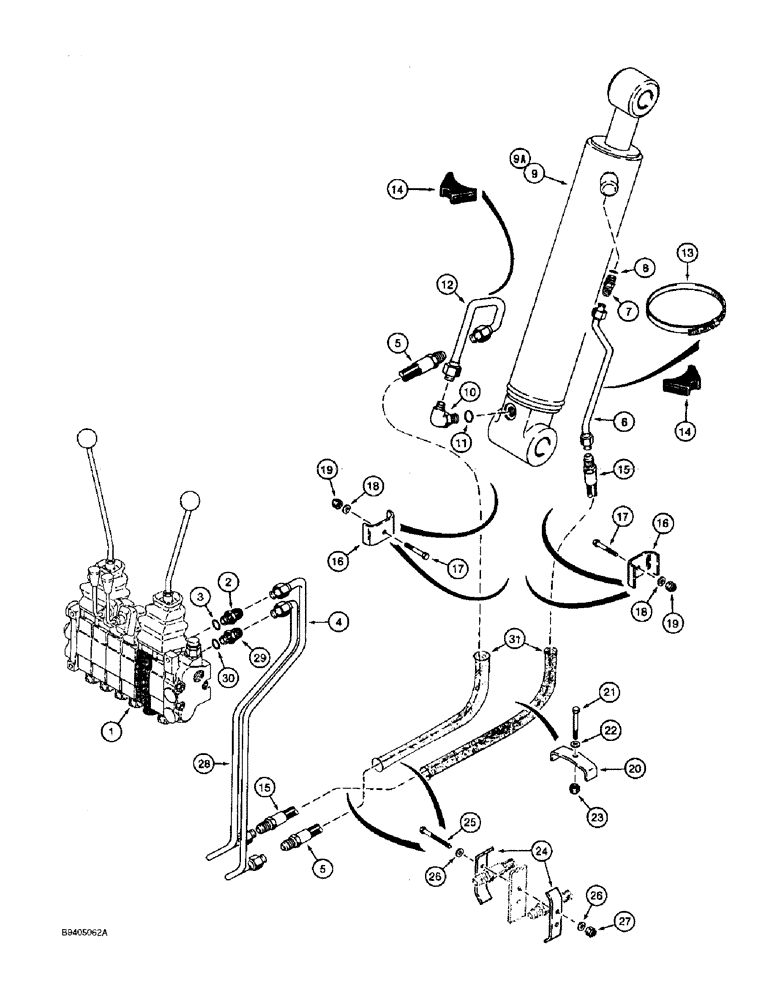

Запчасти Case 860 (8-036) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, parts listed on figures 8-040 - 8-050

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H672388

TUBE ASSY.,15.88 mm OD

TUBE - contol valve to dipper cylinder closed end hose

1шт.

5

H433856

HOSE ASSY.

HOSE - 1800 mm (70-7/8 inch) long, dipper cylinder closed end tube to control valve tube

1шт.

6

H672351

TUBE ASSY.,15.88 mm OD

TUBE - dipper cylinder, rod end

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

H672569

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, parts list figure 8-058

1шт.

9a

138234A1

CYLINDER

ASSEMBLY - 102 (4) ID x 441 mm (17-3/8 inch) stroke, backhoe dipper, parts list figure 8-059A

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

H672350

TUBE ASSY.,15.88 mm OD

TUBE - dipper cylinder, closed end

1шт.

13

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia, dipper cylinder tubes

1шт.

14

D38648

BLOCK

SPACER - rubber

2шт.

15

H433856

HOSE ASSY.

HOSE - 1800 mm (70-7/8 inch) long, control valve tube to dipper cylinder rod end tube

1шт.

16

H231894

CLAMP

- hoses

4шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

18

H426775

WASHER

- flat, special, hardened

4шт.

19

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

20

H433518

CLAMP

- hoses

1шт.

21

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

23

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

24

H233304

CLAMP

- hoses

4шт.

25

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

4шт.

26

H426775

WASHER

- flat, special, hardened

8шт.

27

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

28

H672387

TUBE ASSY.,15.88 mm OD

TUBE - backhoe control valve to dipper cylinder rod end hose

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

D131814

SLEEVE

- hose protector

2шт.
