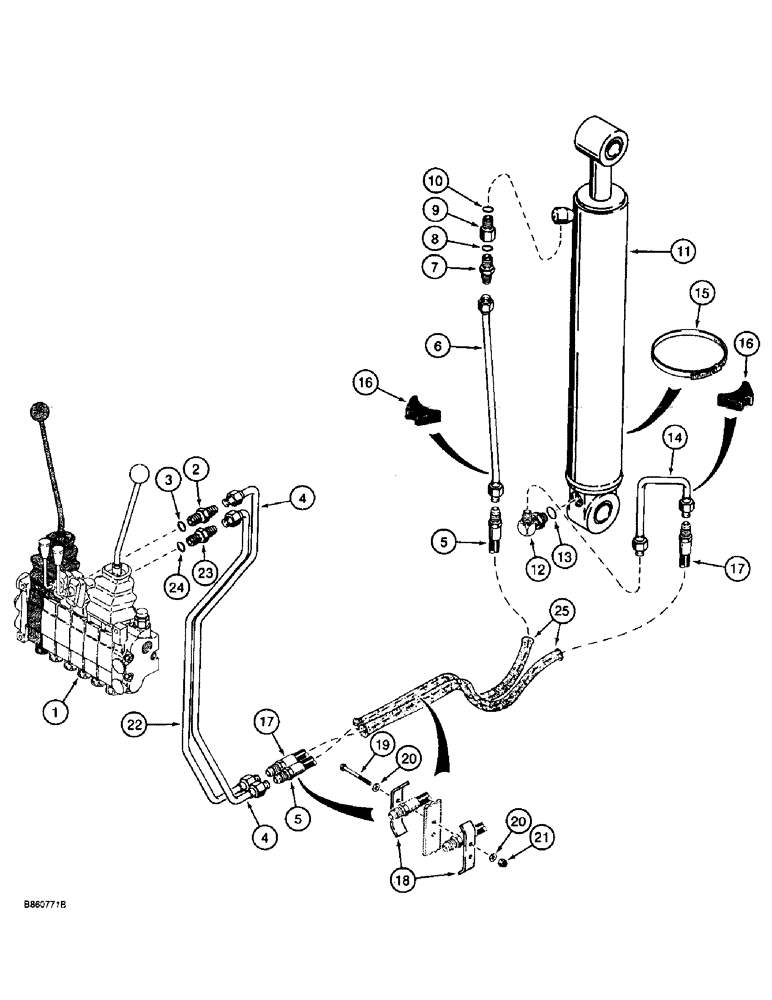

Запчасти Case 860 (8-034) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, backhoe, parts list figures 8-040 - 8-050

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H672386

TUBE ASSY.,15.88 mm OD

TUBE - control valve to boom cylinder rod end hose

1шт.

5

H433855

HOSE ASSY.

HOSE - 910 mm (36 inch) long, control valve tube to boom cylinder rod end tube

1шт.

6

H672349

TUBE,15.88 mm OD x 505, 43 mm L

- boom cylinder, rod end

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

H434281

FITTING

- special, floating orifice, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

H672568

CYLINDER

ASSEMBLY - 102 (4) ID x 622 mm (24-1/2 inch) stroke, parts list figure 8-056

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

H672348

TUBE,15.88 mm OD

- boom cylinder, closed end

1шт.

15

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj., Boom cylinder tubes #88, 5.12/6.00 Type F Worm

1шт.

16

D38648

BLOCK

SPACER - rubber

2шт.

17

H433855

HOSE ASSY.

HOSE - 910 mm (36 inch) long, boom cylinder closed end tube to control valve tube

1шт.

18

H233304

CLAMP

- hoses

4шт.

19

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

4шт.

20

H426775

WASHER

- flat, special, hardened

8шт.

21

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

22

H672385

TUBE ASSY.,15.88 mm OD

TUBE - boom cylinder closed end at backhoe control valve

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

D131789

SLEEVE

- hose retaining

2шт.
