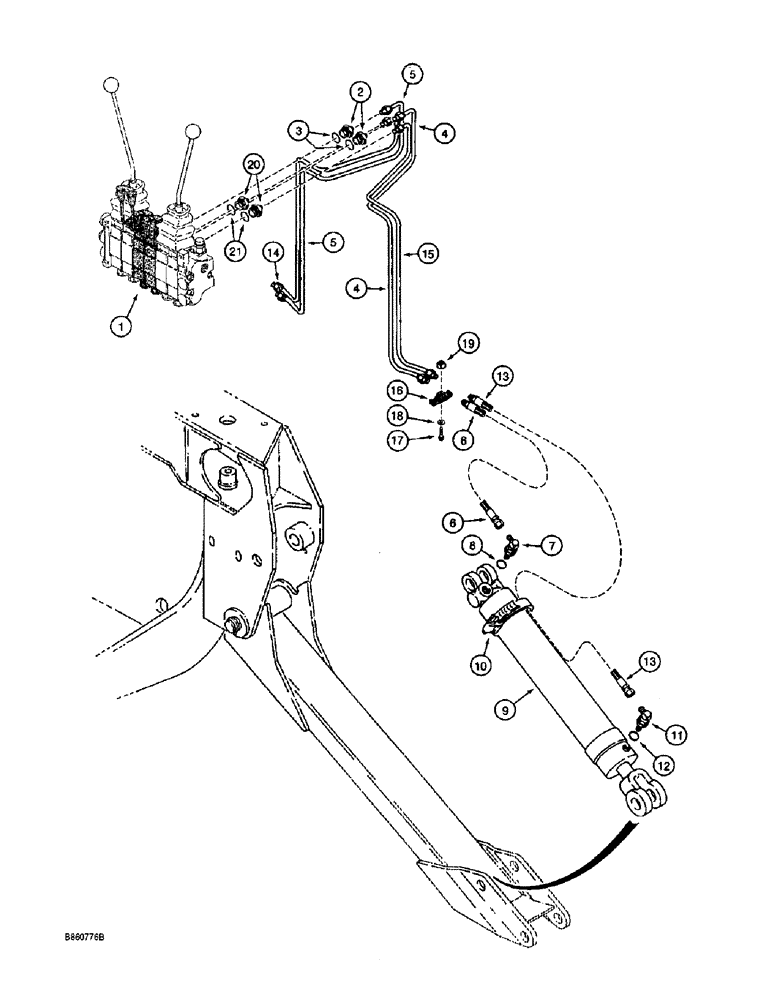

Запчасти Case 860 (8-030) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, parts listed on figures 8-040 - 8-050

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H672407

TUBE ASSY.,9.53 mm OD

TUBE - control valve to right-hand stabilizer cylinder hose

1шт.

5

H672405

TUBE ASSY.,9.53 mm OD

TUBE - control valve to left-hand stabilizer cylinder hose

1шт.

6

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R, Tube to Stabilizer Cylinder, Closed End

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

101646A1

CYLINDER

ASSEMBLY - 95 (3-3/4) ID x 406 mm (16 inch) stroke, backhoe stabilizer, parts list figure 8-052

2шт.

10

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

H434207

HOSE ASSY.

HOSE - 915 mm (36 inch) long, stabilizer cylinder rod, Serial Range: end-tube

2шт.

14

H672406

TUBE ASSY.,9.53 mm OD

TUBE - left-hand stabilizer cylinder rod end hose to control valve

1шт.

15

H672408

TUBE ASSY.,9.53 mm OD

TUBE - right-hand stabilizer cylinder rod end hose to control valve

1шт.

16

D120679

CLAMP,Tube, 1/2"

- stabilizer cylinder hoses

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

20

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
