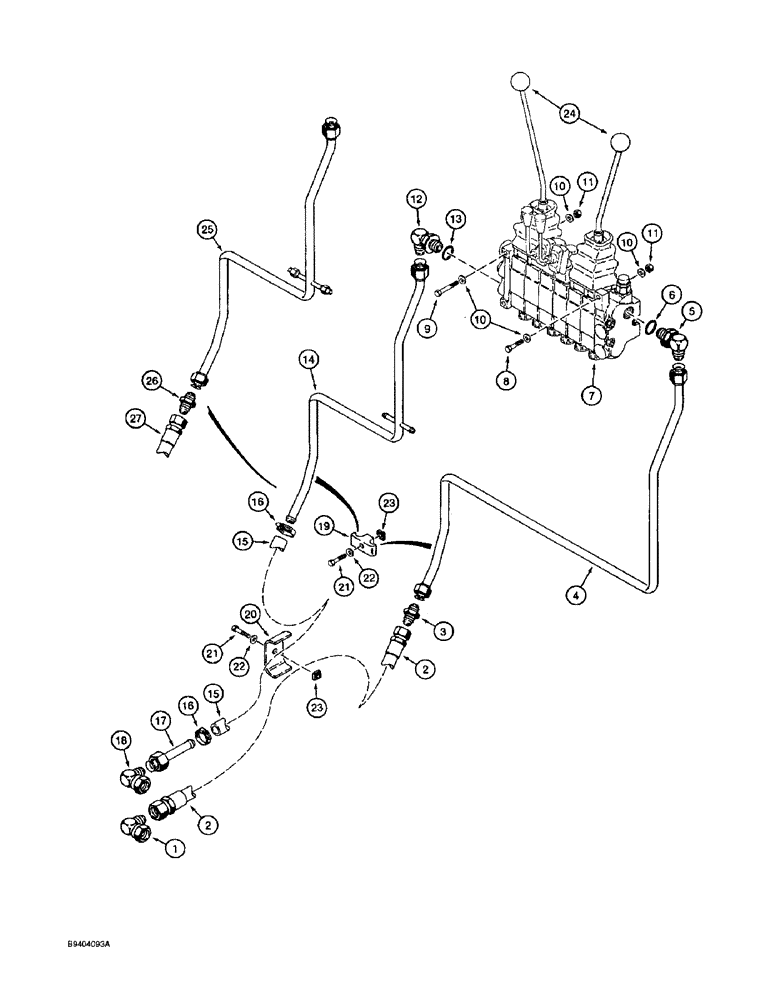

Запчасти Case 860 (8-028) - BACKHOE CONTROL VALVE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

2

H433854

HOSE ASSY.

HOSE - 775 mm (30-1/2 inch) long, backhoe control valve supply

1шт.

3

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

4

H672533

TUBE ASSY.,19.05 mm OD

TUBE - backhoe control valve supply

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

H672270

VALVE

ASSEMBLY - backhoe control, 6 spool, parts listed on figures 8-040 - 8-050

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

9

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

6шт.

11

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

H672534

TUBE ASSY.,19.09 mm OD

TUBE - backhoe control valve return, if used

1шт.

15

D124348

HOSE,19.05 mm ID x 760.00 mm, SAE 30R2 TYPE 1

Cut from H379214 Bulk Hose, Backhoe Control Valve Return, If Used 19.05 mm ID x 760.00 mm, SAE 30R2 TYPE 1

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., If used #16, 0.81/1.50 Type F Worm

2шт.

17

H624452

TUBE,0.75" OD x 6" L

- backhoe return hose to chassis, if used

1шт.

18

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

19

D124301

CLAMP,3/4" ID

- tubes

1шт.

20

H231878

CLAMP

- hoses

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

24

CAS31375

KNOB

- backhoe control valve

2шт.

25

108087A1

TUBE

- backhoe control valve return, if used

1шт.

26

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare, if used

1шт.

27

120837A1

HOSE

- 825 mm (32-1/2 inch) long, backhoe control valve return, if used

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

19.00 mm ID x 5588.00 mm, SAE 30R2, Bulk, Use to make item 15

1шт.
