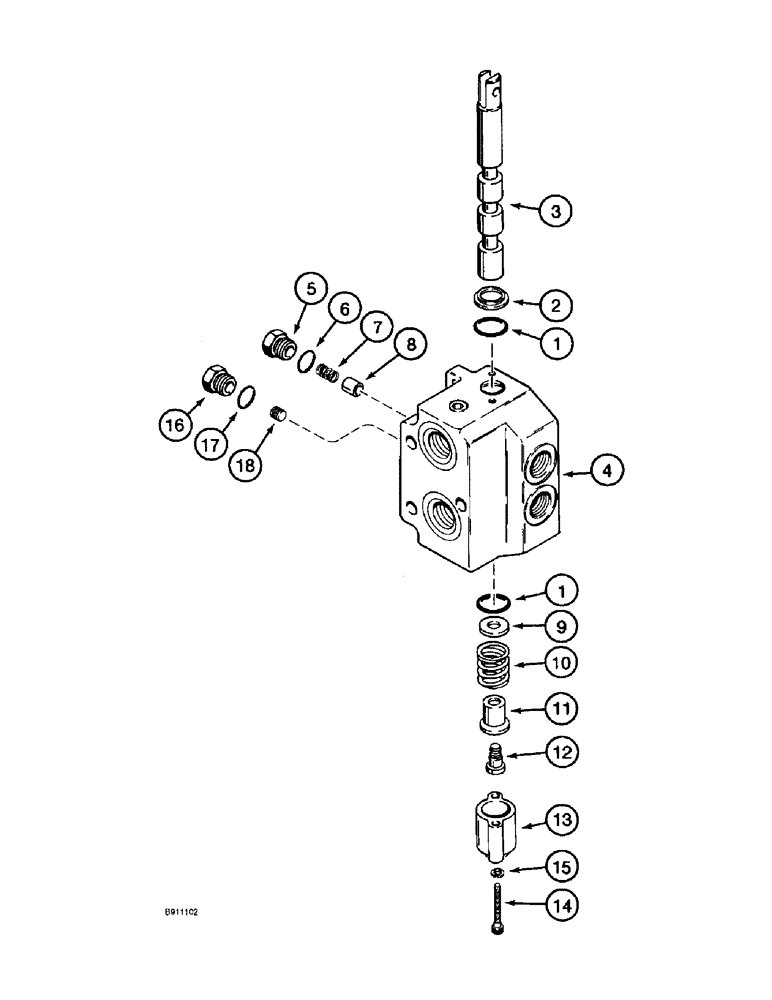

Запчасти Case 860 (8-026) - ATTACHMENT CONTROL VALVE ASSEMBLY - H674793 - OUTLET AND BLADE ANGLE SECTION (08) - HYDRAULICS

H674793

VALVE

ASSEMBLY - control, attachment and rear steering, Includes: Ref. 1 - 9 figure 8-018, 1 - 28 figure 8-020, 1 - 23 figure 8-022, 1 - 17 figure 8-024, 1 - 8 this figure

1шт.

105519A1

KNIFE SECTION

SECTION ASSEMBLY - outlet and blade angle, Includes: Ref. 1 - 18

1шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, Includes: Ref. 5 - 8

1шт.

5

H438231

PLUG

- load check

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

105520A1

KIT

- spring center, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - return

1шт.

10

105521A1

SPRING

- centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

H438231

PLUG

- load check, Includes: Ref. 17

1шт.

18

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
