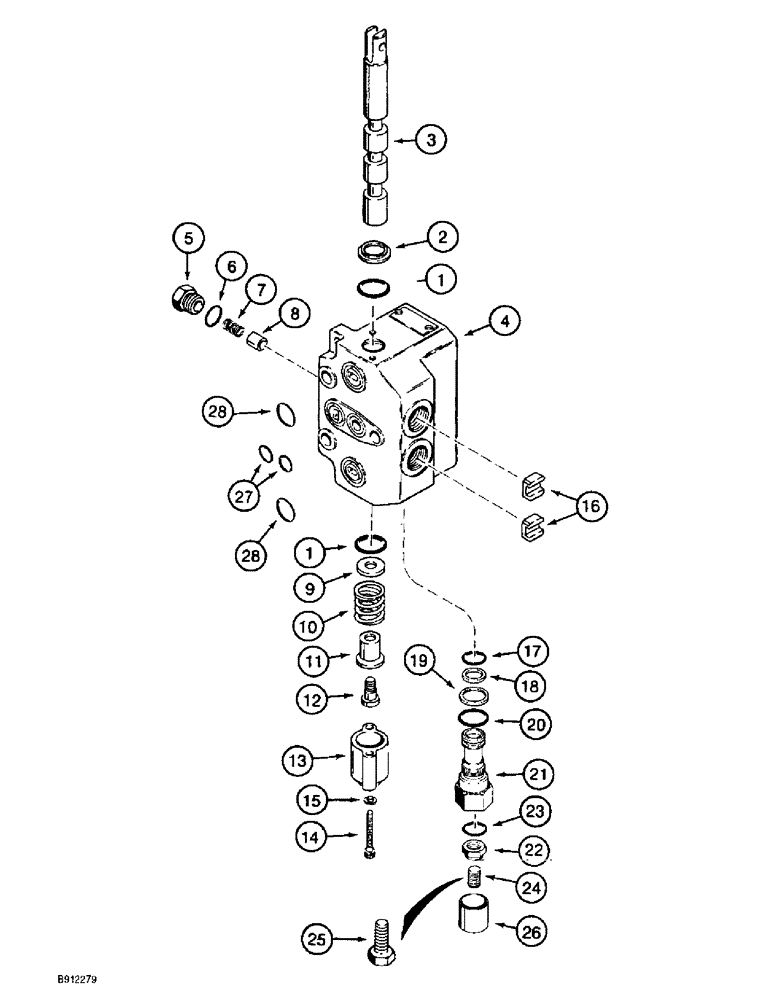

Запчасти Case 860 (8-020) - ATTACHMENT CONTROL VALVE ASSEMBLY - H674793 - INLET AND BLADE TILT SECTION (08) - HYDRAULICS

H674793

VALVE

ASSEMBLY - control, attachment and rear steering, Includes: Ref. 1 - 9 figure 8-018, 1 - 28 this figure, 1 - 23 figure 8-022, 1 - 17 figure 8-024, 1 - 8 figure 8-026

1шт.

105518A1

KNIFE SECTION

SECTION ASSEMBLY - inlet and blade tilt, Includes: Ref. 1 - 16

1шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, Includes: Ref. 5 - 8

1шт.

5

H438231

PLUG

- load check, Includes: Ref. 6

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

100416A1

KIT

- spring center, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - return

1шт.

10

N9539

TENSION SPRING

SPRING - centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

H438941

ORIFICE

PLATE - orifice, 2.388 mm (0.094 inch)

2шт.

100410A1

VALVE

ASSEMBLY - relief, Includes: Ref. 17 - 26

1шт.

17

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Part of Seal Kit H674535

1шт.

18

H438044

GASKET

RING - backup

1шт.

Part of Seal Kit H674535

1шт.

19

101493A1

OIL SEAL

RING - backup

1шт.

Part of Seal Kit H674535

1шт.

20

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

Part of Seal Kit H674535

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

22

H438228

NUT

- relief valve, special

1шт.

Part of Seal Kit H674535

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - special nut

1шт.

Part of Seal Kit H674535

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - set, replaced by item 25

1шт.

25

H438229

ADJUSTMENT SCREW

- relief valve, adjustment

1шт.

Part of Seal Kit H674535

1шт.

26

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

27

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

28

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

H674535

GASKET KIT

KIT - seal, main relief valve, 100410A1 relief valve, Includes: Ref. 17, 18, 19, 20, 22, 23, 25

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
