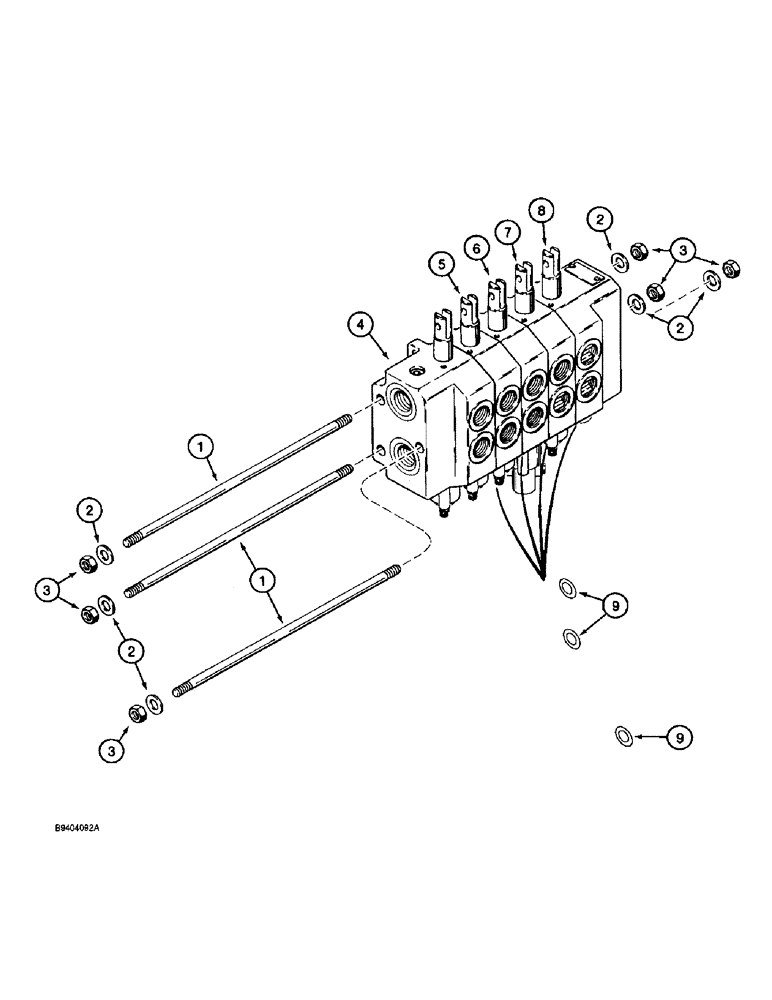

Запчасти Case 860 (8-018) - ATTACHMENT CONTROL VALVE ASSEMBLY - H674793 (08) - HYDRAULICS

H674793

VALVE

ASSEMBLY - control, 5 spool, Includes: Ref. 1 - 9 this figure, 1 - 28 figure 8-020, 1 - 23 figure 8-022, 1 - 17 figure 8-024, 1 - 8 figure 8-026

1шт.

1

100411A1

ROD

- tie, valve sections

3шт.

2

101492A1

WASHER

- flat, special

6шт.

3

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

6шт.

4

105519A1

KNIFE SECTION

SECTION ASSEMBLY - outlet and blade angle, control valve, parts list figure 8-026

1шт.

5

100414A1

KNIFE SECTION

SECTION ASSEMBLY - attachment lift, parts list figure 8-024

1шт.

6

100414A1

KNIFE SECTION

SECTION ASSEMBLY - rear steering, parts list figure 8-024

1шт.

7

100415A1

KNIFE SECTION

SECTION ASSEMBLY - blade lift, parts list figure 8-022

1шт.

8

105518A1

KNIFE SECTION

SECTION ASSEMBLY - inlet and blade tilt, control valve, parts list figure 8-020

1шт.

9

128531A1

SHIM

- 0.001 inch thick, between sections

12шт.
