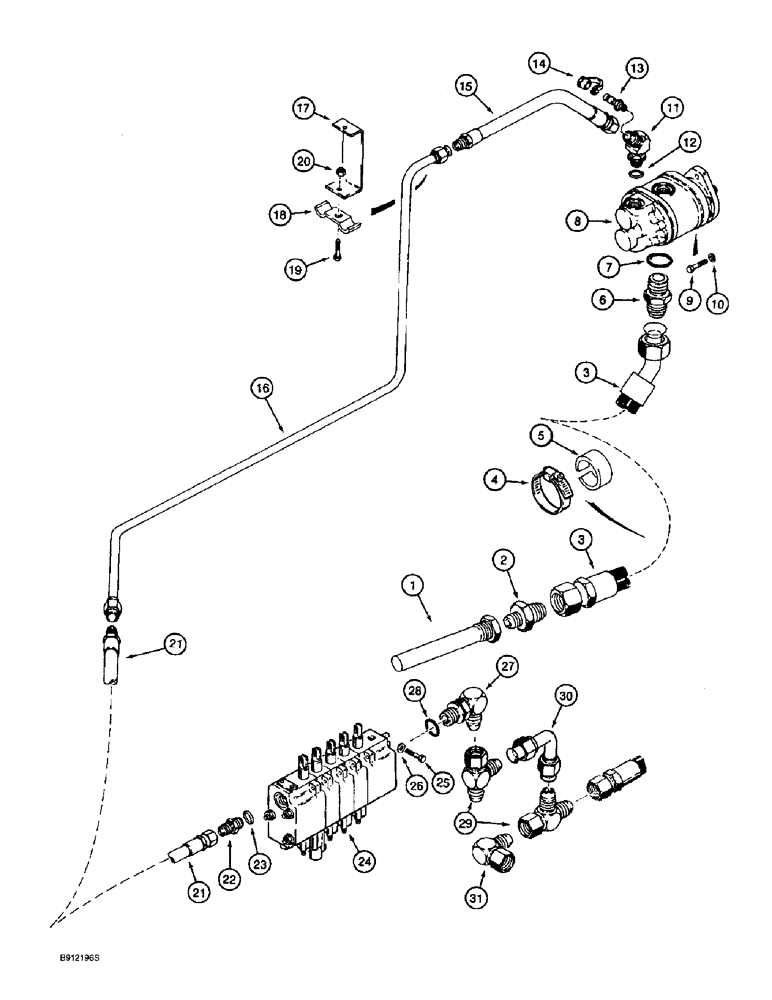

Запчасти Case 860 (8-016) - BASIC HYDRAULIC CIRCUIT - DUAL PUMP TO ATTACHMENT CONTROL VALVE TO RETURN TEE (08) - HYDRAULICS

1

H434204

BAFFLE

SCREEN - suction

1шт.

2

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/8-12 flare x 1-1/4 inch PT

1шт.

3

H433853

HOSE

- 1300 mm (51 inch) long, suction , reservoir to dual pump

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

1шт.

5

H201301

GUARD

- hose

1шт.

6

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

H672435

PUMP, HYDRAULIC

PUMP ASSEMBLY - dual, parts list figure 5-16

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

H434165

ELBOW

- 45 degree, special, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

H434164

COUPLING

COUPLER - quick check

1шт.

14

H434163

DUST CAP

CAP - dust

1шт.

15

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump to Priority Flow Divider Valve Supply Tube 12.70 mm ID x 431.80 mm, SAE 100R2

1шт.

16

H674952

TUBE,15.9 mm OD

- attachment control valve supply

1шт.

17

H439068

BRACKET

- tube mounting

1шт.

18

A12032

CLAMP

- tube

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

20

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

21

H267054

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R2

- Tube to attachment control valve 12.70 mm ID x 939.80 mm, SAE 100R2

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

H674793

VALVE

ASSEMBLY - control, attachment and rear steering, parts list figures 8-018 - 8-026

1шт.

25

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

26

H426775

WASHER

- flat, special, hardened

3шт.

27

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

2шт.

30

H674928

TUBE,19.1 mm OD x 159, 88 mm L

- attachment control valve to return tee

1шт.

31

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel, see figure 8-012 for return filter hydraulic circuit

1шт.
