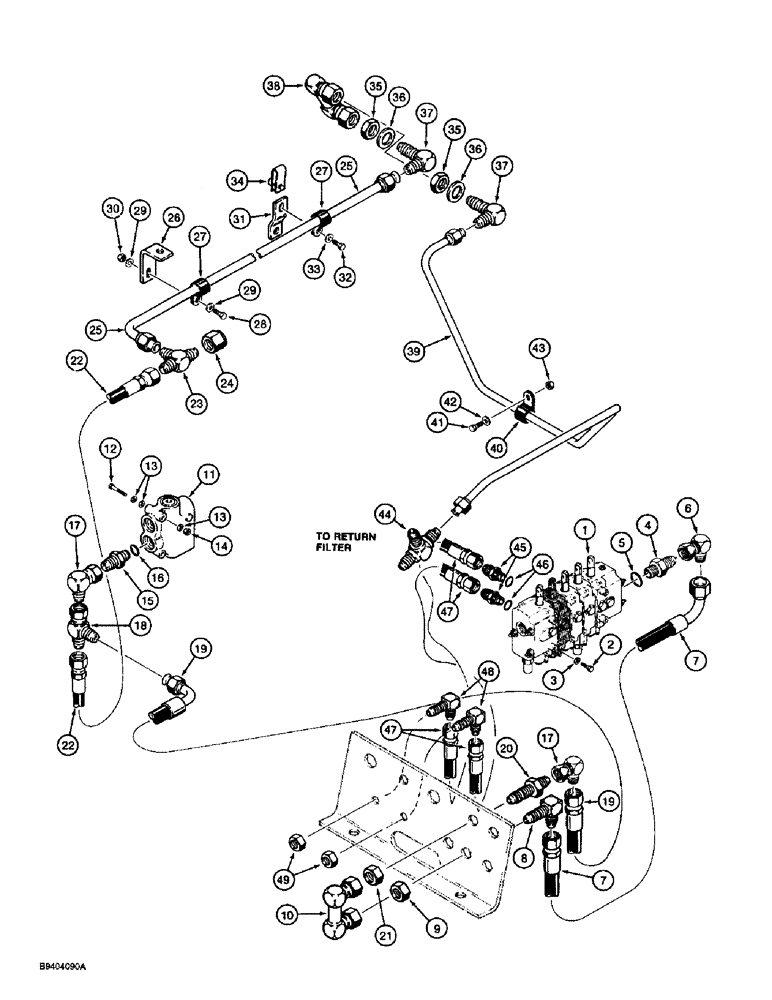

Запчасти Case 860 (8-006) - BASIC HYDRAULIC CIRCUIT - POWER BEYOND HYDRAULIC CIRCUIT, ATTACHMENT RAISE & LOWER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H674793

VALVE

ASSEMBLY - control, attachment and rear steering, parts list figures 8-018 - 8-026

1шт.

2

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3

H426775

WASHER

- flat, special, hardened

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

7

H439322

HOSE

- 1050 mm (42 inch) long, attachment control valve to rear bulkhead plate

1шт.

8

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

9

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

10

H673212

FITTING

- special

1шт.

11

H672904

VALVE

ASSEMBLY - priority flow divider, parts list figure 5-18

1шт.

12

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

13

H426775

WASHER

- flat, special, hardened

6шт.

14

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

2шт.

18

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

19

H434986

HOSE ASSY.

HOSE - 1150 mm (25-1/4 inch) long, priority flow divider valve to rear bulkhead plate

1шт.

20

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

21

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

22

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve to Backhoe Supply Tube 0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

23

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare branch x flare x flare

1шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

25

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

- backhoe supply line

1шт.

26

H434096

BRACKET

- tube support

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

31

H435758

SUPPORT

- tube

1шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

33

H426775

WASHER

- flat, special, hardened

1шт.

34

H346650

NUT

- U-type, 5/16 inch NC

1шт.

35

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

36

95-81125

WASHER,1 1/16" x 1 3/4" x .065"

- flat, 1-1/16 x 1-3/4 x 1/16 inch

2шт.

37

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

38

H673212

FITTING

- special, not used on units equipped with backhoe, see figure 8-028 for backhoe control valve supply and return lines

1шт.

39

H674900

TUBE,19.1 mm OD

- return, left-hand front chassis bulkhead fitting to tee, see figure 8-012 for return filter hydraulic circuit

1шт.

40

D88051

CLAMP

- tube

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

42

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

43

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

44

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x flare, see figure 8-012 for return filter hydraulic circuit from tee

1шт.

45

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 46

2шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

47

H434077

HOSE

- 900 mm (35-3/8 inch) long, attachment control valve to rear bulkhead plate for attachment raise and lower

2шт.

48

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare

2шт.

49

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.
