Запчасти Case 860 (8-004) - BASIC HYDRAULIC CIRCUIT (08) - HYDRAULICS

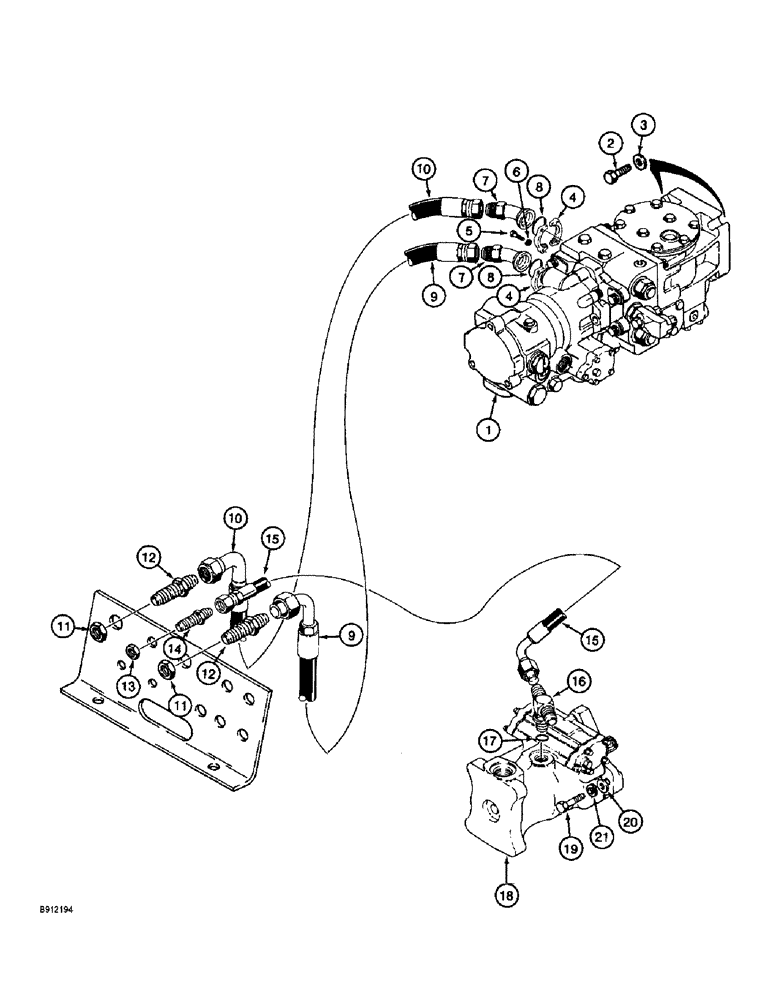

Схема запчастей Case 860 - (8-004) - BASIC HYDRAULIC CIRCUIT (08) - HYDRAULICS
16
9
3
4
7
2
10
15
11
19
13
11
21
20
15
14
8
5
12
17
12
10
9
8
1
18
7
4
6

Артикул

Название

Примечание

Количество

1

H674786

PUMP

ASSEMBLY - tandem, parts list figures 6-10 - 6-24

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8, Special

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

S97224

CLAMP

- split flange, 1 inch

4шт.

5

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

7

H439279

ADAPTER

ELBOW - 45 degree, special

2шт.

8

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

9

H439282

HOSE

- 1680 mm (66-3/16 inch) long, attachment high loop

1шт.

10

H439283

HOSE

- 1676 mm (66 inch) long, attachment low loop

1шт.

11

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

12

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, 1-5/16-12 inch flare x bulkhead flare

2шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

14

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

15

H433208

HOSE ASSY.

HOSE - 650 mm (26 inch) long, case drain, from bulkhead plate to ground drive motor

1шт.

16

218-5505

TEE,1 1/16"-12, 37º x 7/8"-14 x 1 1/16"-12, O-Ring Br

- 1-1/16-12 adj O-ring branch x flare x 7/8-14 inch flare, Includes: Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

H674155

HYDRAULIC MOTOR

MOTOR ASSEMBLY - ground drive, parts list figure 6-28

1шт.

19

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

BOLT - hex socket, 12 - 1.75 x 40 mm

2шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

Выбрано товаров: 21
