Запчасти Case 860 (6-68) - WHEELS AND TIRES (06) - POWER TRAIN

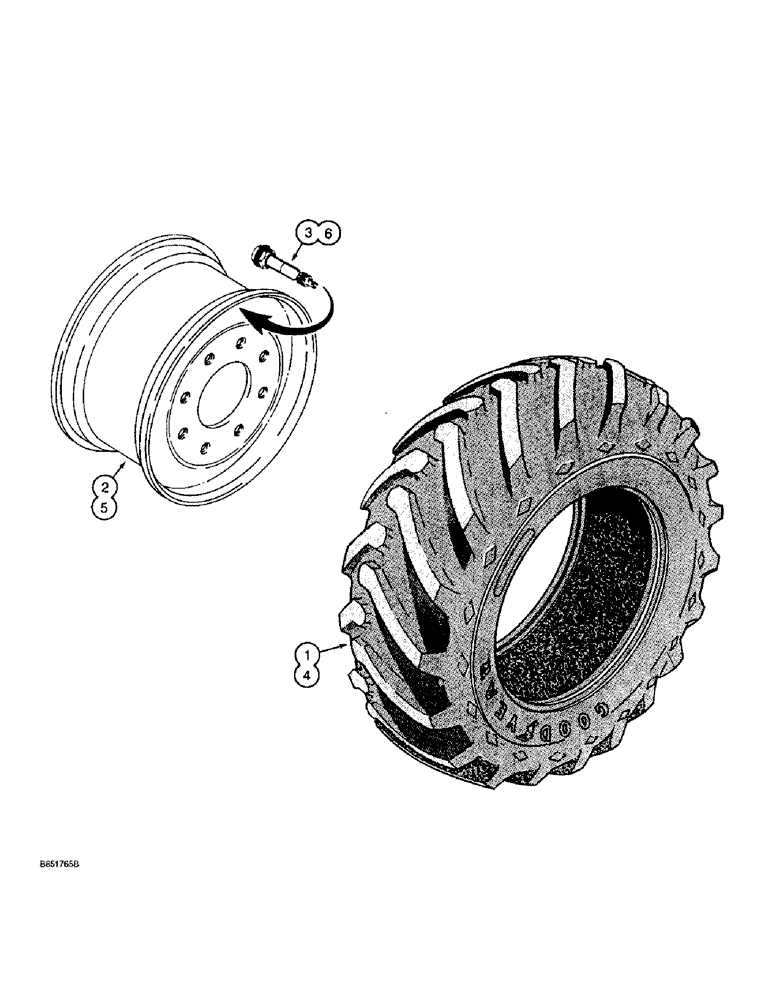

Схема запчастей Case 860 - (6-68) - WHEELS AND TIRES (06) - POWER TRAIN
1
4
3
6
5
2

Артикул

Название

Примечание

Количество

H939076

TIRE AND WHEEL ASSEMBLY - 38 x 14 - 20 NHS (Super Terra Grip) 4 ply rating, machinery item, order from Machinery Price List, if used, Includes: Ref. 1 - 3

4шт.

1

REF

INSTRUCTION

TIRE - 38 x 14 - 20 NHS (Super Terra Grip) 4 ply rating, purchase locally, if used

1шт.

2

H438449

RIM

WHEEL - rim

1шт.

3

A38261

VALVE

- stem, tire inflation, tubeless

1шт.

H939096

TIRE AND WHEEL ASSEMBLY - 38 x 14 - 20 NHS (Super Terra Grip) 8 ply rating, machinery item, order from Machinery Price List, if used, Includes: Ref. 4 - 6

4шт.

4

REF

INSTRUCTION

TIRE - 38 x 14 - 20 NHS (Super Terra Grip) 8 ply rating, purchase locally, if used

1шт.

5

H438449

RIM

WHEEL - rim

1шт.

6

T57461

VALVE STEM

VALVE - stem, tire inflation

1шт.

H674695

WHEEL

TIRE AND WHEEL ASSEMBLY - 38 X 18 - 20 NHS (Super Terra Grip) 10-ply rating, machinery item, order from Machinery Price List, if used, Includes: Ref. 7 - 9

4шт.

7

REF

INSTRUCTION

TIRE - 38 x 18 - 20 NHS (Super Terra Grip) 10 ply rating, purchase locally, if used, not shown

1шт.

8

H438450

RIM

WHEEL - rim, used with 38 x 18 tire, not shown

1шт.

9

T57461

VALVE STEM

VALVE - stem, tire inflation, wheel, not shown

1шт.

Выбрано товаров: 12
