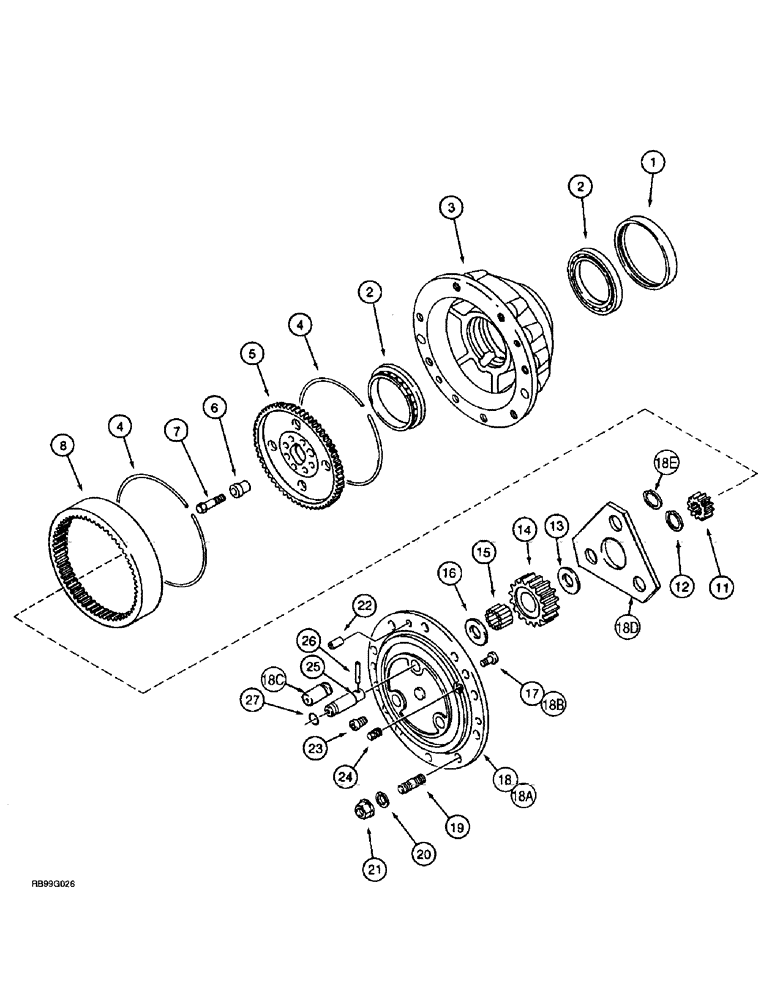

Запчасти Case 860 (6-66) - FRONT AND REAR AXLE ASSEMBLIES - PLANETARY, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figurer 6-65K, and 1 - 27 this figure

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figurer 6-65K, and 1 - 27 this figure

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

K395123

HUB

- wheel attaching

2шт.

4

H437679

RING, SNAP

RING - locking

4шт.

5

H437678

RING, FLYWHEEL

GEAR - support

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD

14шт.

6

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

8

H437677

GEAR, RING

GEAR - internal-tooth

2шт.

11

K395114

GEAR

- pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING - snap, pinion gear retaining

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

- thrust, planetary gear, inner, used with N13516 cover

6шт.

14

N13513

GEAR,29 T

Planetary 29 T

6шт.

15

119686A1

10 NEEDLE BRG KIT

BEARING - needle, package of 10, planetary gear

18шт.

16

K395091

THRUST WASHER

WASHER, THRUST, Planetary gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking, planetary cover

2шт.

18

N13516

COVER

- planetary, no longer available, order 309421A1 carrier assembly

2шт.

309421A1

COVER ASSY

CARRIER - planetary, Includes: Ref. 18A - 18E

2шт.

18a

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

18b

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking, planetary carrier

1шт.

18c

NSS

NOT SOLD SEPARAT

SHAFT - planetary gear

3шт.

18d

K395122

PLATE

WASHER - thrust, pinion gear, inner

1шт.

18e

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

3шт.

19

K260218

STUD

- without collar, special, not shown

12шт.

19

N13515

STUD

- with collar, special

4шт.

20

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- lock, special

16шт.

21

K395089

WHEEL NUT

- hex, special

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

23

K395029

SCREW

- special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

if used M22 x 1.5

2шт.

24

110782A1

PLUG, DRAIN

PLUG - 24 mm, drain, if used

2шт.

25

N13517

PIN,34.4mm OD x 80mm L

SHAFT - planetary gear, used with N13516 cover

6шт.

26

838-5436

LOCK PIN,M4 x 36, Slotted

PIN - roll, 4 x 36 mm, planetary gear shaft, used with N13517 shaft

6шт.

27

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Planetary gear shaft, used with N13517 shaft -216, 70 Duro, 1.109" ID x .139" Thk

6шт.
