Запчасти Case 860 (6-65K) - FRONT AND REAR AXLE ASSEMBLIES - AXLE SHAFTS, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

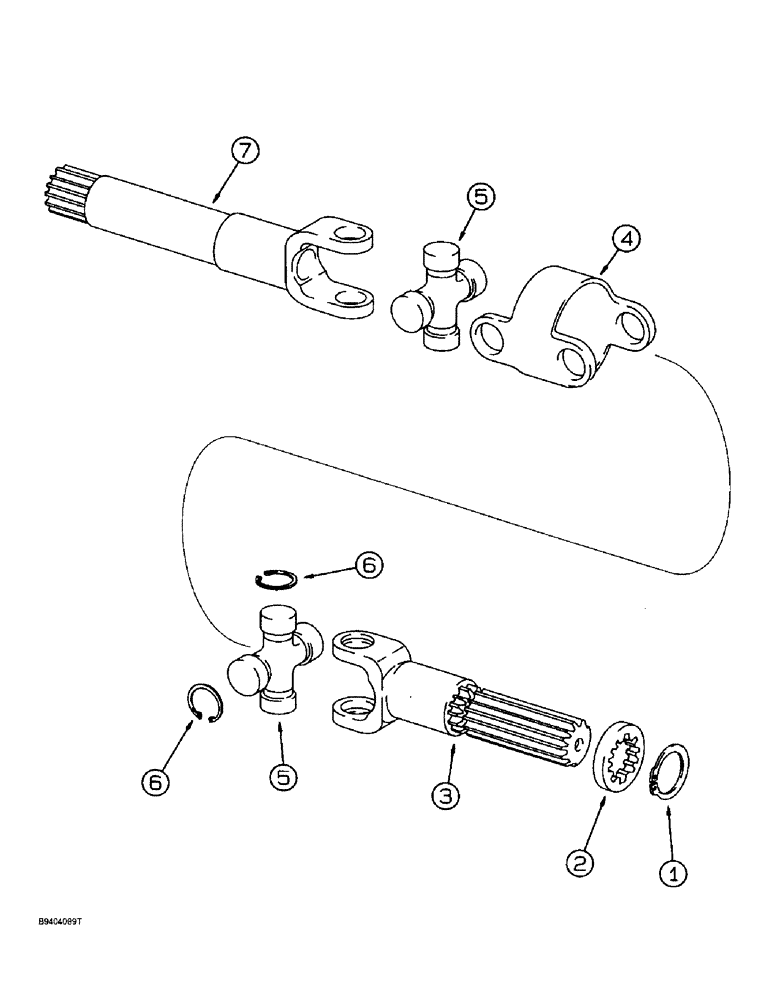

Схема запчастей Case 860 - (6-65K) - FRONT AND REAR AXLE ASSEMBLIES - AXLE SHAFTS, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN
5
1
6
5
2
6
4
7
3

Артикул

Название

Примечание

Количество

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 this figure, and 1 - 27 figure 6-66

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 this figure, and 1 - 27 figure 6-66

1шт.

1

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

2

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER - pinion gear, axle shaft

2шт.

D149733

STEERING SHAFT

SHAFT ASSEMBLY - axle, Includes: Ref. 3 - 7

2шт.

3

N14409

SHAFT

- axle, wheel side, short

1шт.

4

N14412

BODY

- connecting

1шт.

5

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft, cross

2шт.

6

N14410

RING

- snap, universal joint

8шт.

7

D149735

SHAFT

- axle, differential side, long

1шт.

Выбрано товаров: 10
