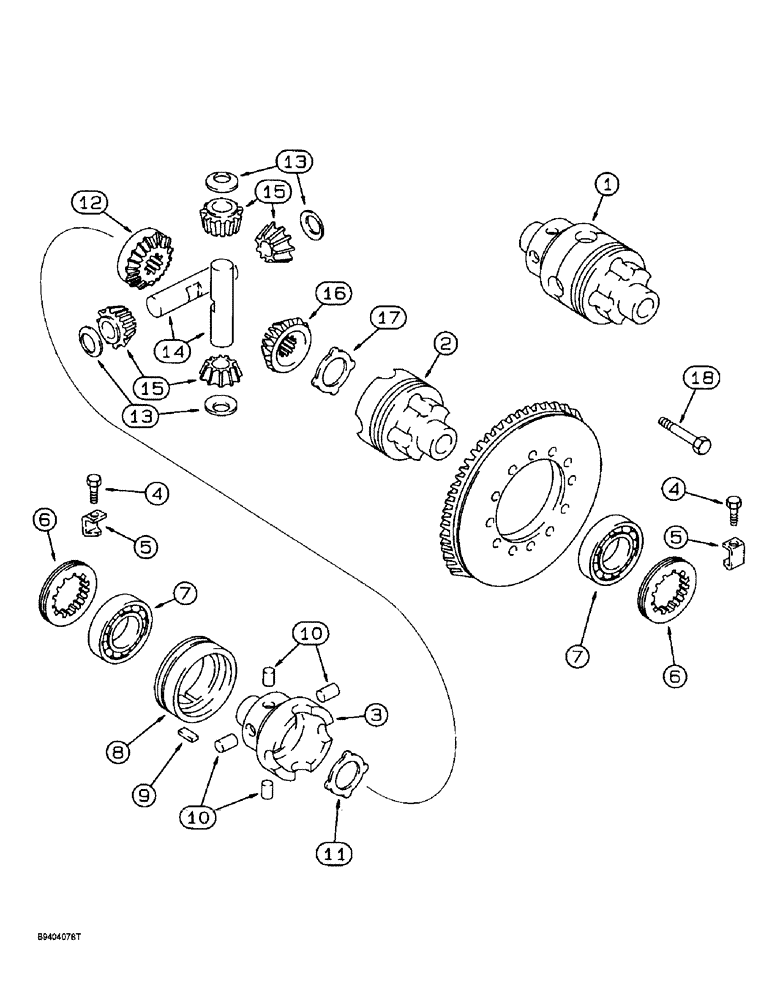

Запчасти Case 860 (6-65I) - FRONT AND REAR AXLE ASSEMBLIES DIFFERENTIAL, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 this figure, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 this figure, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

1

128386A1

HOUSING

ASSEMBLY - differential, prior to S/N 438 (Front Axle - 111400A1) and prior to S/N 452 (Rear Axle - 111401A1), Includes: Ref. 2 and 3

1шт.

1

232002A1

HOUSING

ASSEMBLY - differential, S/N 438 and after (Front Axle - 111400A1) and S/N 452 and after (Rear Axle - 111401A1), Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

4

112486A1

BOLT,Hex, M6 x 12

BOLT - hex, self-locking, special

2шт.

5

K261869

LOCK

BRACKET - locking

2шт.

6

K261868

RING

- locking, threaded

2шт.

7

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

8

128389A1

SLEEVE

- differential housing, prior to S/N 438 (Front Axle - 111400A1) and prior to S/N 452 (Rear Axle - 111401A1)

1шт.

8

232003A1

COLLAR

SLEEVE - differential housing, S/N 438 and after (Front Axle - 111400A1) and S/N 452 and after (Rear Axle - 111401A1)

1шт.

9

128388A1

KEY

- sleeve, if used

1шт.

10

128387A1

PIN

- locking, differential

4шт.

11

1967003C1

THRUST WASHER

WASHER - thrust, pinion gear

1шт.

12

N14407

GEAR

- side, planetary, differential

1шт.

13

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

4шт.

14

N13507

PIN

SHAFT - pinion gear

2шт.

15

N14408

SUN GEAR

GEAR - pinion, differential

4шт.

16

128385A1

PINION

GEAR - side, differential

1шт.

17

1967003C1

THRUST WASHER

WASHER - thrust, pinion gear

1шт.

18

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.
