Запчасти Case 860 (6-65G) - FRONT AND REAR AXLE ASSEMBLIES - RING & PINION GEAR SET, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

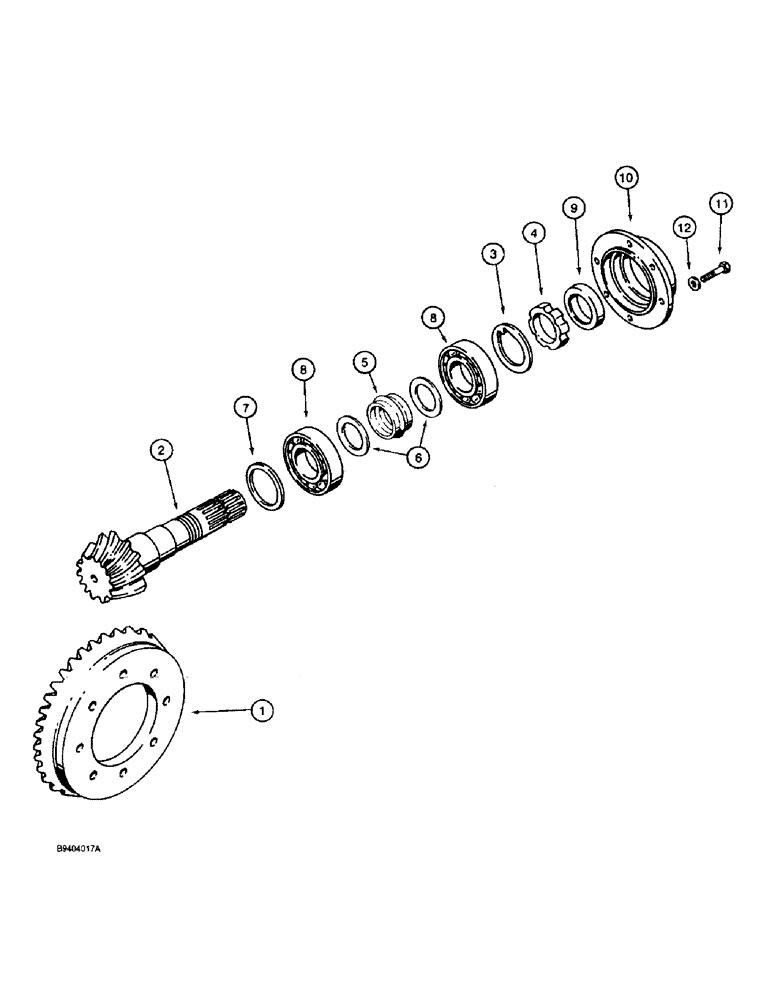

Схема запчастей Case 860 - (6-65G) - FRONT AND REAR AXLE ASSEMBLIES - RING & PINION GEAR SET, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN
4
7
5
1
8
2
10
6
11
8
9
12
3

Артикул

Название

Примечание

Количество

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 this figure, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 this figure, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

N13506

BEVEL GEAR

GEAR ASSEMBLY - ring and pinion set, used with 111400A1 front axle, Includes: Ref. 1 - 6

1шт.

N13500

GEAR

ASSEMBLY - ring and pinion set, used with 111401A1 rear axle, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

K261065

LOCK WASHER

- special

1шт.

4

K261852

NUT

RING - nut, pinion gear

1шт.

5

1349058C1

SPACER

- collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

- spacer

2шт.

7

K965280

SHIM,2.50mm Thk

1шт.

7

K965282

SHIM,2.60mm Thk

1шт.

7

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

7

K965286

SHIM,2.85mm Thk

1шт.

7

K965288

SHIM,2.90mm Thk

1шт.

7

K965290

SPACER

SHIM - 3.00 mm thick

1шт.

7

K965292

SHIM,3.10mm Thk

1шт.

7

K965294

SHIM,3.20mm Thk

1шт.

7

K965296

SHIM,3.30mm Thk

1шт.

7

K965298

SHIM,3.40mm Thk

1шт.

8

230499A1

TAPERED BEARING

- tapered roller, pinion gear

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil

1шт.

10

K395055

COVER

- differential

1шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, Cover mounting

6шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

Выбрано товаров: 25
